Tab Housing

  • JWPS CONNECTOR
Download Datenblatt

Number Of Poles

  • 4
Article Number 04T-JWPS-VKELE-DZ-A1 04T-JWPS-VKKLE-DX-A1
Number Of Contacts 4 4
Upper Temperature +85 °C +85 °C
Lower Temperature -55 °C -55 °C
General Description Waterproof Connectors (4.0mm Pitch Disconnectable Crimp Style (Wire to Wire)) Waterproof Connectors (4.0mm Pitch Disconnectable Crimp Style (Wire to Wire))
Connection Type Wire to Wire Connectors Wire to Wire Connectors
Pitch / Style 4.0 mm 4.0 mm
Rated Current (ac/dc) 4 C, DC (WG #22) 5 C, DC (WG #20) 6 C, DC (WG #18) A 4 C, DC (WG #22) 5 C, DC (WG #20) 6 C, DC (WG #18) A
Rated Voltage (ac/dc) 300 V 300 V
Remark Waterproof Waterproof
Remark * Z Keying X Keying
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

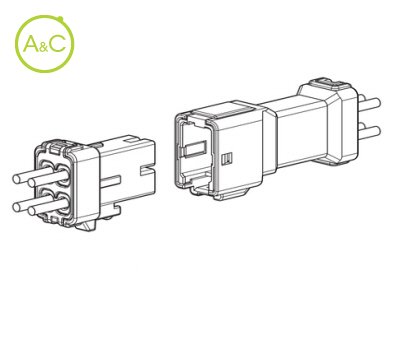

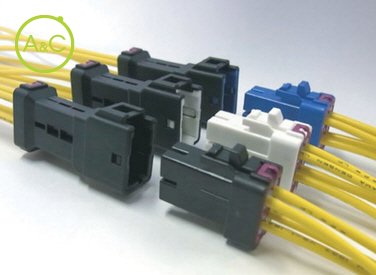

JST introduces the new waterproof JWPS connector series. This is a development on JST’s successful JWPF connector and meets the need for a small form factor waterproof connector that will cope with the electrical requirements normally associated with large connector systems. With a pitch size of 4.0mm, this waterproof connector consists of plug, receptacle, and header elements, that allow for wire to wire and wire to board configurations. The JWPS connector has been primarily designed for applications where waterproof protection is required, with a waterproof grade equivalent to 7 ingress protection. This crimp style connector features a PBT (glass filled) seal ring holder, which contains a silicon rubber seal ring. This ring offers effective sealing against liquids and protection from dust, gases and other contaminates. Available in 4 circuits, the JWPS series has a visually distinguishing three colour coding system for the prevention of mis-mating of the plug receptacle. Waterproof grade: Equivalent to 7 ingress protection of JIC C0920. (IEC 60529 IPX7) Contained seal ring Mis-mating prevention key Double spring construction RoHS Compliant
