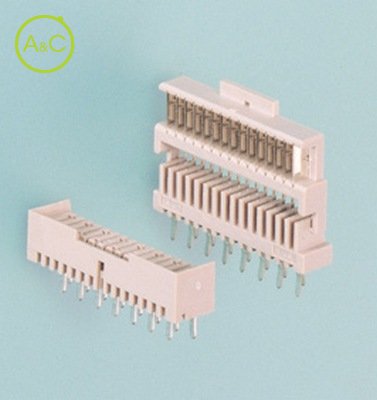

Plug For 1.25FJ Connector

1.25FJ CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	07P250K-1.25FJNA	07P280K-1.25FJN
Number Of Contacts	7	7
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	1.25mm Pitch Board-to-Board Connector	1.25mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	1.25 mm	1.25 mm
Rated Current (ac/dc)	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark	250 type	280 type

Article Number	09P-1.25FJ
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.25mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.25 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	250 type

Article Number	11P-1.25FJ	11P250K-1.25FJNA	11P280K-1.25FJN
Number Of Contacts	11	11	11
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
General Description	1.25mm Pitch Board-to-Board Connector	1.25mm Pitch Board-to-Board Connector	1.25mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	1.25 mm	1.25 mm	1.25 mm
Rated Current (ac/dc)	0.5 A	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V	50 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark	Short type	250 type	280 type

Article Number	13P-1.25FJ	13P250K-1.25FJNA	13P280K-1.25FJN
Number Of Contacts	13	13	13
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
General Description	1.25mm Pitch Board-to-Board Connector	1.25mm Pitch Board-to-Board Connector	1.25mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	1.25 mm	1.25 mm	1.25 mm
Rated Current (ac/dc)	0.5 A	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V	50 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark	Short type	250 type	280 type

Article Number	15P-1.25FJ
Number Of Contacts	15
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.25mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.25 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	250 type

Article Number	19P-1.25FJ	19P215S-1.25FJ	19P250K-1.25FJNA	19P280K-1.25FJN
Number Of Contacts	19	19	19	19
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C
General Description	1.25mm Pitch Board-to-Board Connector	1.25mm Pitch Board-to-Board Connector	1.25mm Pitch Board-to-Board Connector	1.25mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Rated Current (ac/dc)	0.5 A	0.5 A	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V	50 V	50 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark	Short type	Long type	250 type	280 type

Article Number	21P-1.25FJ
Number Of Contacts	21
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.25mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.25 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	250 type

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

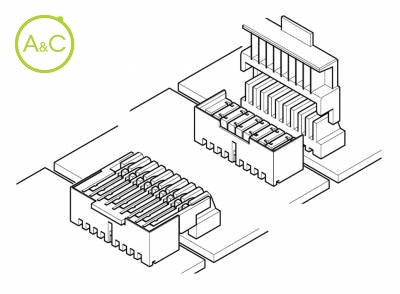

The plug consists of a unique flexible hinge that absorbs circuit board misalignment. Low profile. Only 5.0mm (.197") in mounting height. The flexible construction of the plug allows it to be mated after its PC boards are mounted in their enclosures. High-retention zigzag fork contacts. Low profile The 1.25FJ Connector is only 5.0mm (.197") in mounting height. Allows connection after mating The unique flexible construction of the plug allows it to be mated after its printed circuit boards are mounted in their enclosures. Assures a reliable connection Superior reliability is assured even if the assembly is subjected to external stress and vibration. This sturdiness is due to a secure locking device and the use of JST's high-retention zigzag fork contacts. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
