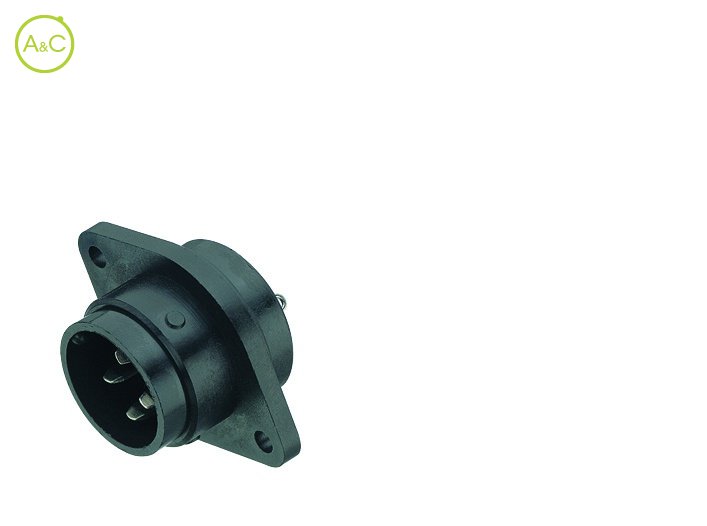

Male panel mount connector

09-0057-00-03

09-0057-00-03

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

3
5
7
12

Article Number	09 0057 00 03
Connector Diameter	29 mm
Number Of Contacts	3 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	2.5 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	10 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PBT (UL 94 V-0)
Datenblatt	Download Datenblatt

Article Number	09 0061 00 05
Connector Diameter	29 mm
Number Of Contacts	5 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	2.5 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	10 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PBT (UL 94 V-0)
Datenblatt	Download Datenblatt

Article Number	09 0065 00 07
Connector Diameter	29 mm
Number Of Contacts	7 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	0.75 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	8 mΩ
Material Of Contact	CuZn (Brass)
Plating	CuSnZn (Optalloy)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PBT (UL 94 V-0)
Datenblatt	Download Datenblatt

Article Number	09 0469 00 12
Connector Diameter	29 mm
Number Of Contacts	12 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	0.75 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	8 mΩ
Material Of Contact	CuZn (Brass)
Plating	CuSnZn (Optalloy)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PBT (UL 94 V-0)
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
