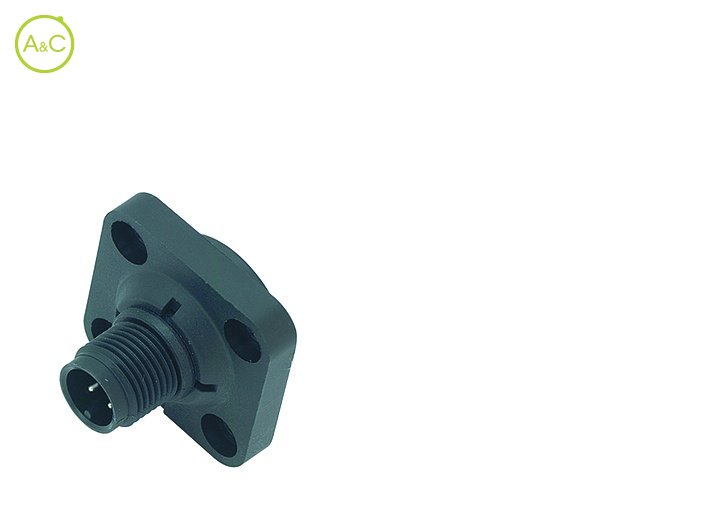

Square male panel mount connector

  • Positioning possible, contact surface optalloy, IP40
  • With sealing IP67 see accessories

Number Of Poles

  • 4
  • 5
Article Number 09 0431 16 04

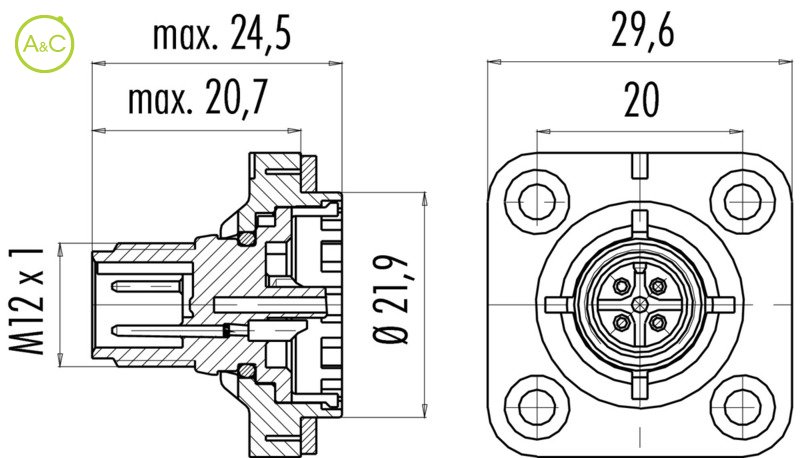

Connector Diameter 21.9 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Solder
Wire Section 0.25 mm²
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 8 mΩ
Material Of Contact CuZn (Brass)
Plating CuSnZn (Optalloy)
Material Of Insert PA/PBT
Material Of Housing PA
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
