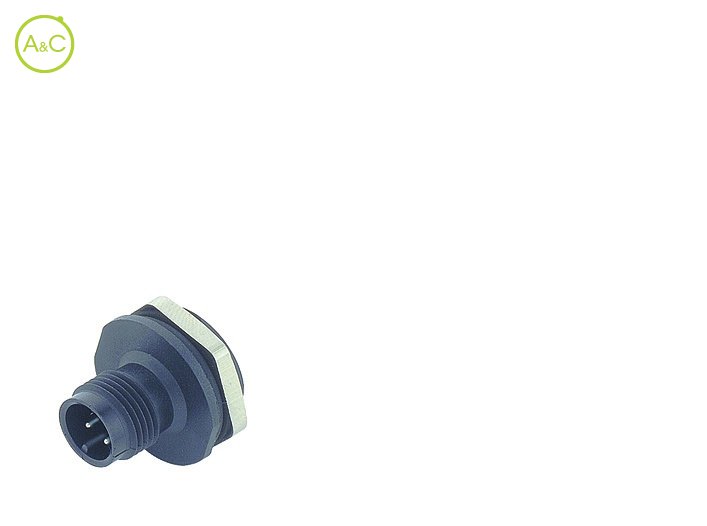

Male panel mount connector

  • Fixing thread

Number Of Poles

  • 4
Article Number 09 0435 90 04

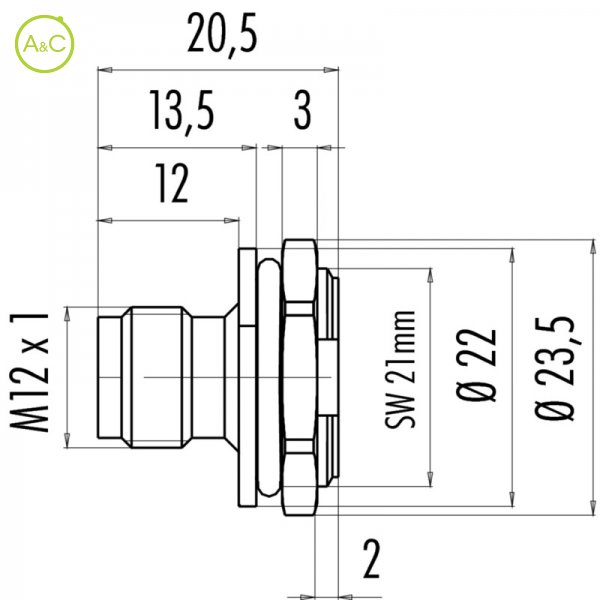

Connector Diameter 23.5 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-B)
Termination Solder
Wire Section 0.5 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Fixing Thread PG11
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
