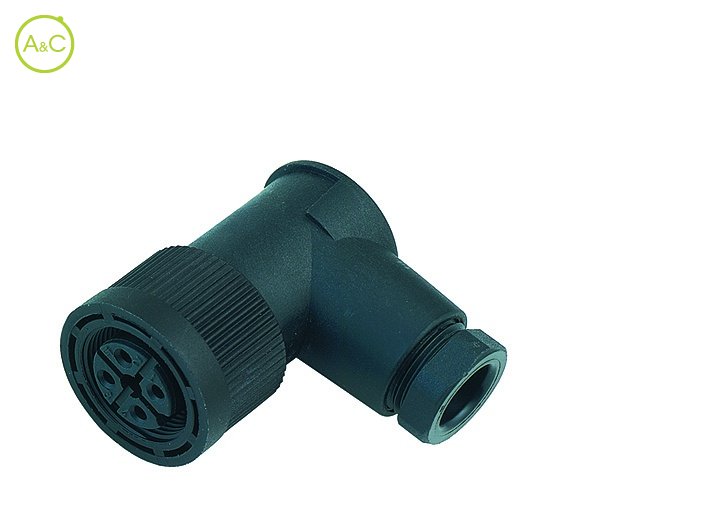

Female angled connector

Number Of Poles

  • 4
Article Number 09 0440 00 04 09 0440 000 04

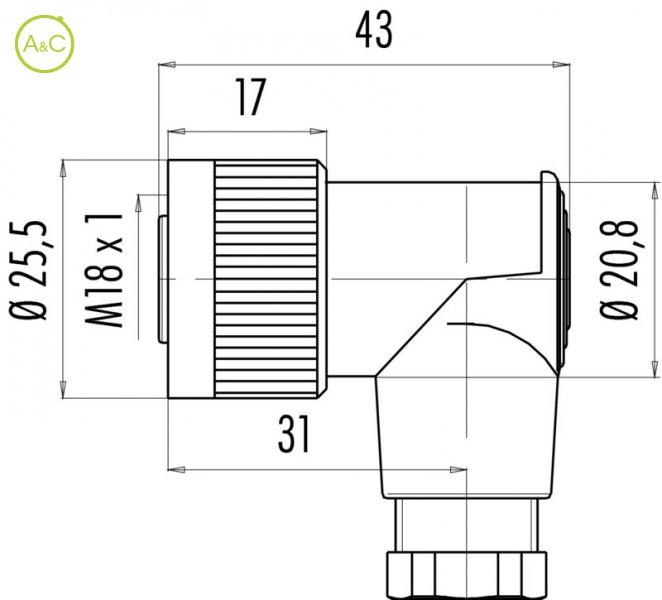

Connector Diameter 25.5 mm 25.5 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M18) Screw (M18)
Termination Screw Screw
Wire Section 1.5 mm² 1.5 mm²
Protection Degree IP67 IP67
Mating Cycles >50 times >50 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 250 250
Rated Impuls Voltage 4000 V 4000 V
Pollution Degree 3 3
Overvoltage Categorie III III
Material Group III III
Rated Current (40°) 16 A cUR 5 A
Max. Contact Resistance 8 mΩ 8 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating CuSnZn (Optalloy) CuSnZn (Optalloy)
Material Of Insert PA (UL 94 HB) / PBT (UL 94-0) PA (UL 94 HB) / PBT (UL 94-0)
Material Of Housing PA (UL 94 HB) / PBT (UL 94-0) PA (UL 94 HB) / PBT (UL 94-0)
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
