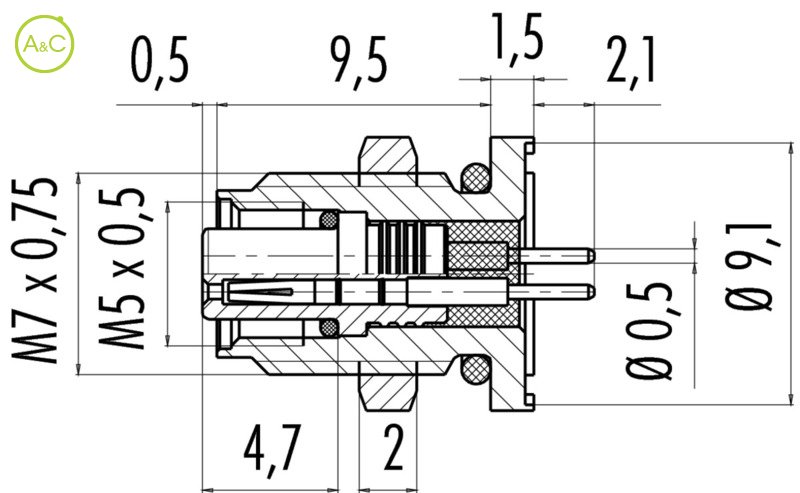

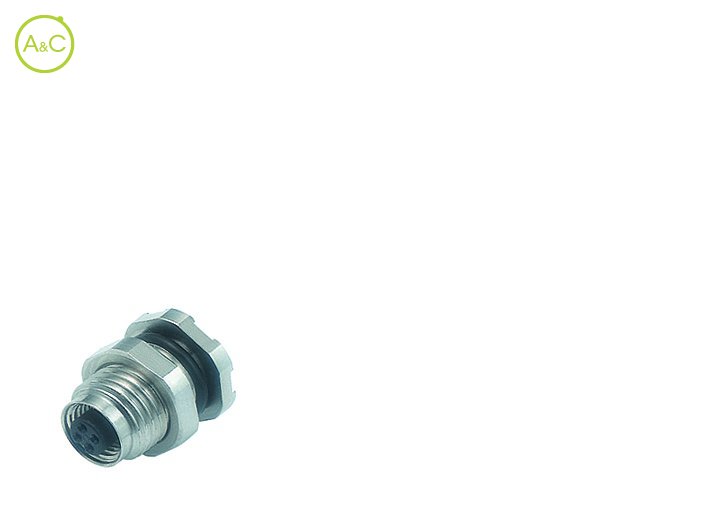

Female panel mount connector

  • With dip solder contacts

Number Of Poles

  • 3
  • 4
Article Number 09 3106 81 03
Number Of Contacts 3 contacts
Connector Locking System Screw (M5)
Termination Dip solder
Wire Section 0.14 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +80 °C
Lower Temperature -25 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group I
Rated Current (40°) 1 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing CuZn (Brass nickel plated)
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
