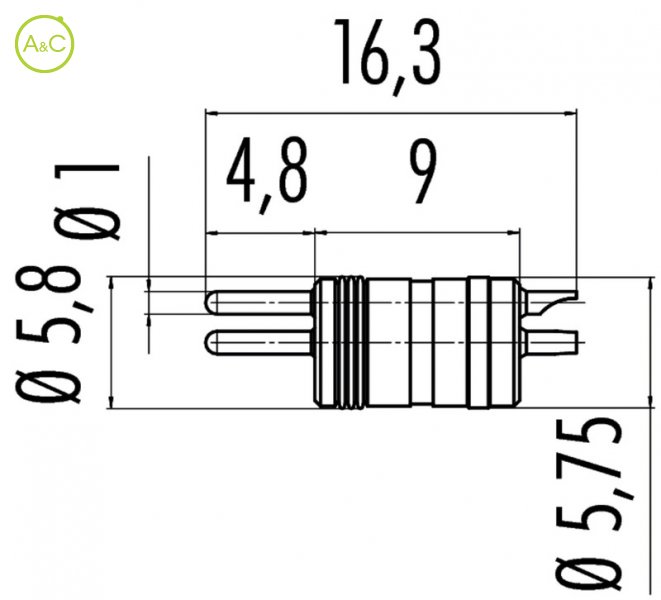

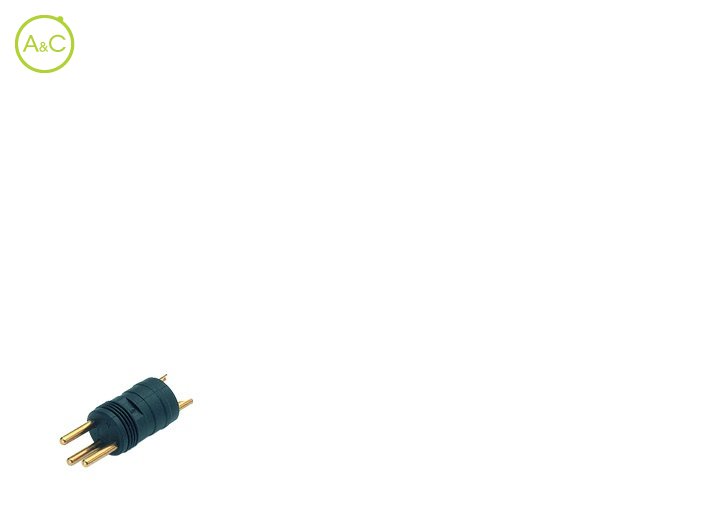

Male receptacle

  • For M8 tube

Number Of Poles

  • 3
  • 4
Article Number 09 3411 70 03
Connector Diameter 5.8 mm
Number Of Contacts 3 contacts
Termination Solder
Wire Section 0.25 mm²
Upper Temperature +70 °C
Lower Temperature -40 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 HB)
Material Of Housing CuZn (Brass nickel plated)
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
