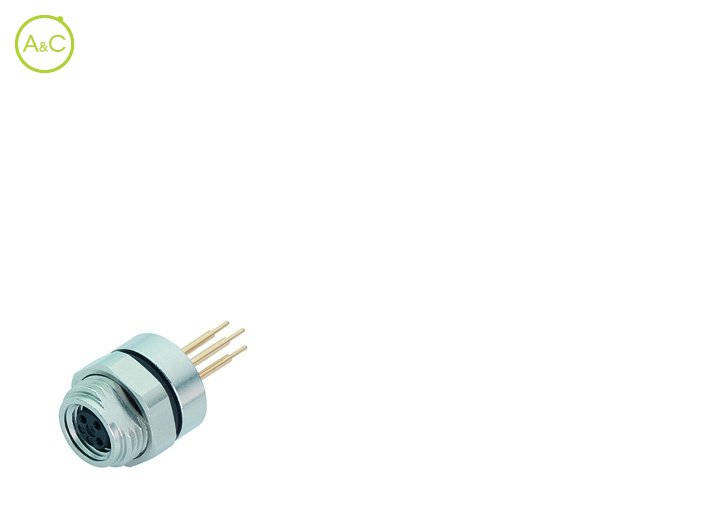

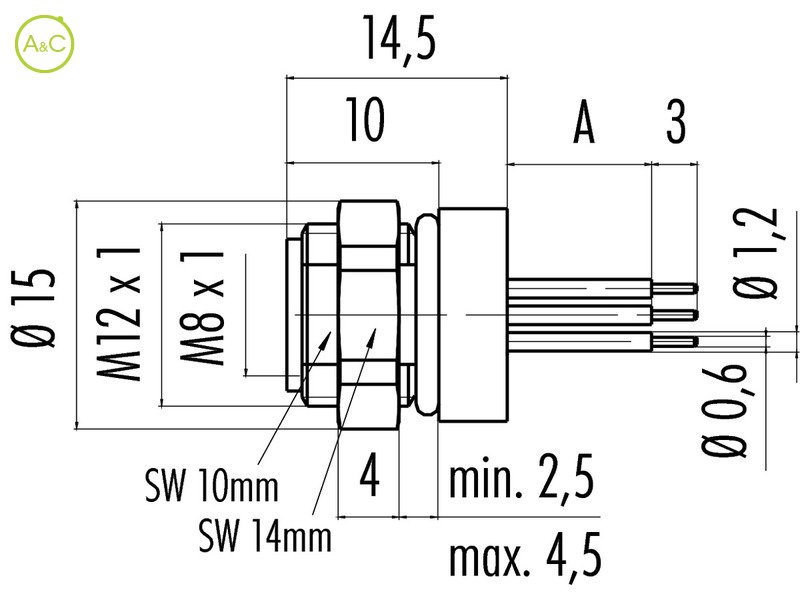

Female socket

  • Front fastened, dip solder
  • UL-approval

Number Of Poles

  • 3
  • 4
  • 6
  • 8
Article Number 09 3412 80 03 09 3412 187 03 09 3412 186 03
Connector Diameter 15 mm 15 mm 15 mm
Number Of Contacts 3 contacts 3 contacts 3 contacts
Connector Locking System Screw (M8) Screw (M8) Screw (M8)
Termination Dip solder Dip solder Dip solder
Protection Degree IP67 IP67 IP67
Mating Cycles >100 times >100 times >100 times
Upper Temperature +85 °C +85 °C +85 °C
Lower Temperature -40 °C -40 °C -40 °C
Rated Voltage 60 60 60
Rated Impuls Voltage 800 V 800 V 800 V
Pollution Degree 3 3 3
Overvoltage Categorie II II II
Material Group II II II
Rated Current (40°) 4 A 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PA PA PA
Material Of Housing CuZn (Brass nickel plated) CuZn (Brass nickel plated) CuZn (Brass nickel plated)
