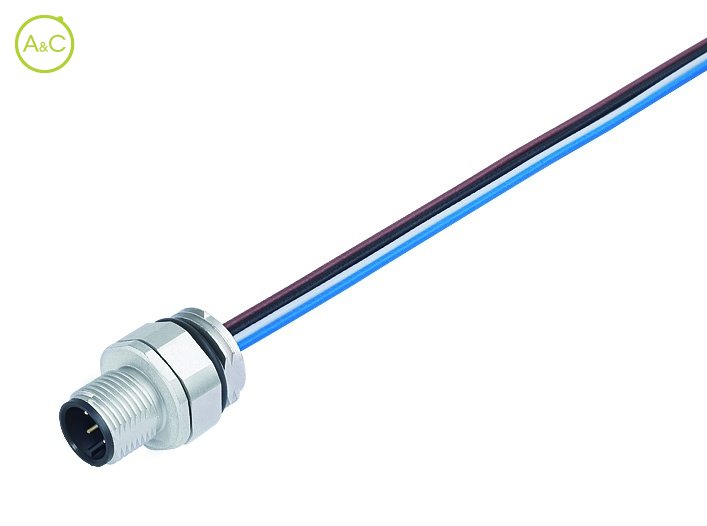

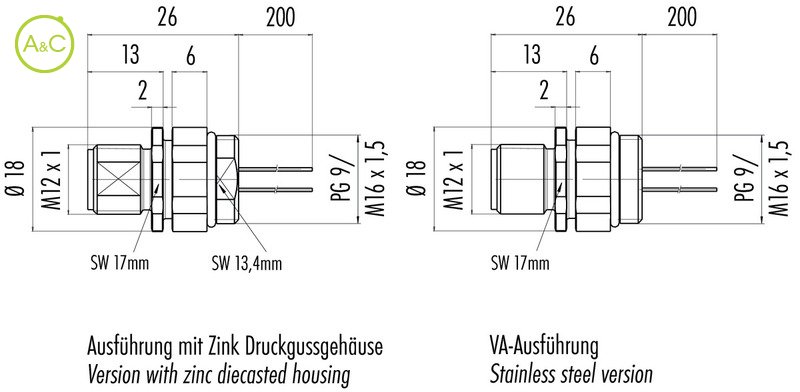

Male panel mount connector

  • Positioning possible, With single wires, 0,25mm²
  • UL-approval

Number Of Poles

  • 4
  • 5
  • 8
  • 12
Article Number 76 0731 0011 00004 0200 76 0831 0011 00004 0200 76 2731 0111 00004 0200 76 2831 0111 00004 0200
Old Article Number 09 3431 22 04 09 3431 722 04 09 3431 678 04 09 3431 778 04
Connector Diameter 18 mm 18 mm 18 mm 18 mm
Number Of Contacts 4 contacts 4 contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A) Screw (M12-A) Screw (M12-A)
Termination Single wires Single wires Single wires Single wires
Wire Section 0.25 mm² 0.25 mm² 0.25 mm² 0.25 mm²
Protection Degree IP68 IP68 IP68 IP68
Mating Cycles >100 times >100 times >100 times >100 times
Upper Temperature +85 °C +85 °C +85 °C +85 °C
Lower Temperature -40 °C -40 °C -40 °C -40 °C
Rated Voltage 250 250 250 250
Rated Impuls Voltage 2500 V 2500 V 2500 V 2500 V
Pollution Degree 3 3 3 3
Overvoltage Categorie II II II II
Material Group II II II II
Rated Current (40°) 4 A 4 A 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PA PA PA PA
Material Of Housing Zinc diecasting nickel plated Zinc diecasting nickel plated Stainless steel Stainless steel
Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
