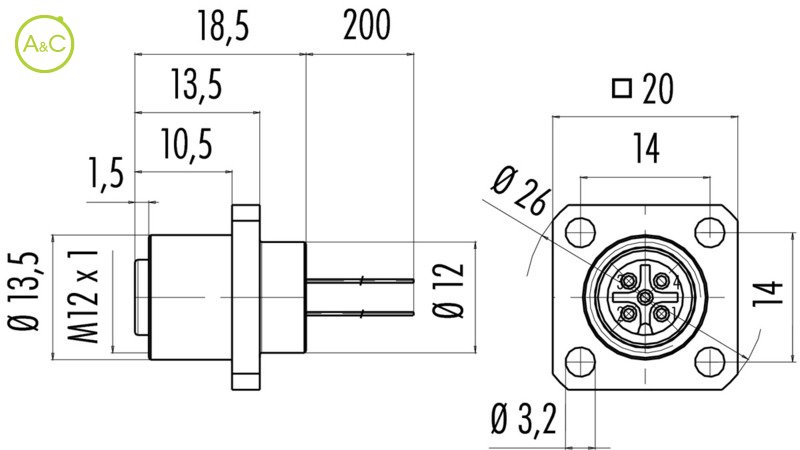

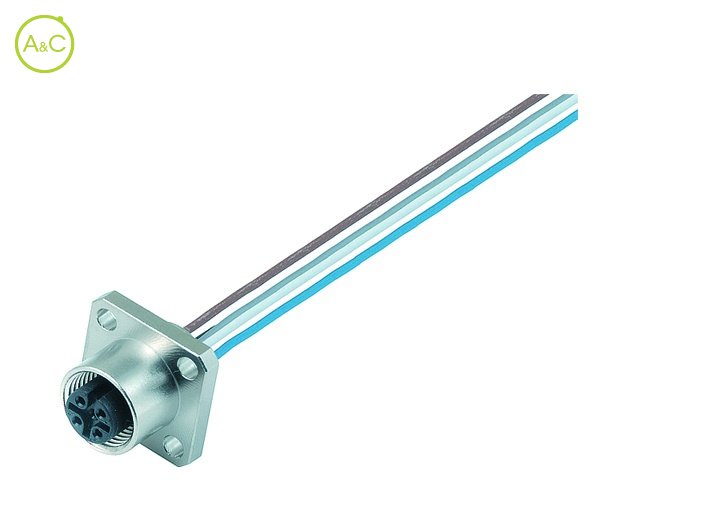

Female panel mount connector

Degree of protection without sealing IP40, with sealing IP67
UL-approval

76-0932-0111-00004-0200

76-0932-0111-00004-0200

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

4
5
8
12

Article Number	76 0932 0111 00004 0200
Old Article Number	09 3448 00 04
Connector Diameter	13.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Single wires
Wire Section	0.25 mm²
Protection Degree	IP40/IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass nickel plated
Datenblatt	Download Datenblatt

Article Number	76 0932 0111 00005 0200
Old Article Number	09 3458 00 05
Connector Diameter	13.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Single wires
Wire Section	0.25 mm²
Protection Degree	IP40/IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass nickel plated
Datenblatt	Download Datenblatt

Article Number	76 0932 0111 00008 0200
Old Article Number	09 3488 00 08
Connector Diameter	13.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Single wires
Wire Section	0.25 mm²
Protection Degree	IP40/IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass nickel plated
Datenblatt	Download Datenblatt

Article Number	76 0932 0111 00012 0200
Old Article Number	09 3498 00 12
Connector Diameter	13.5 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M12-A)
Termination	Single wires
Wire Section	0.14 mm²
Protection Degree	IP40/IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass nickel plated
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
