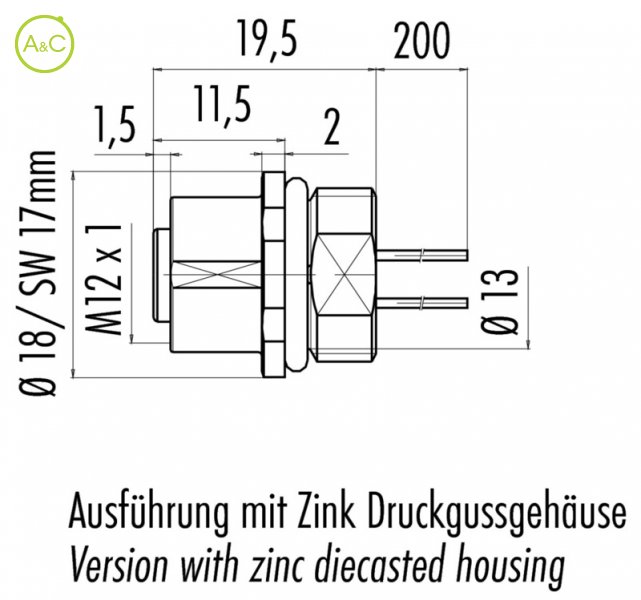

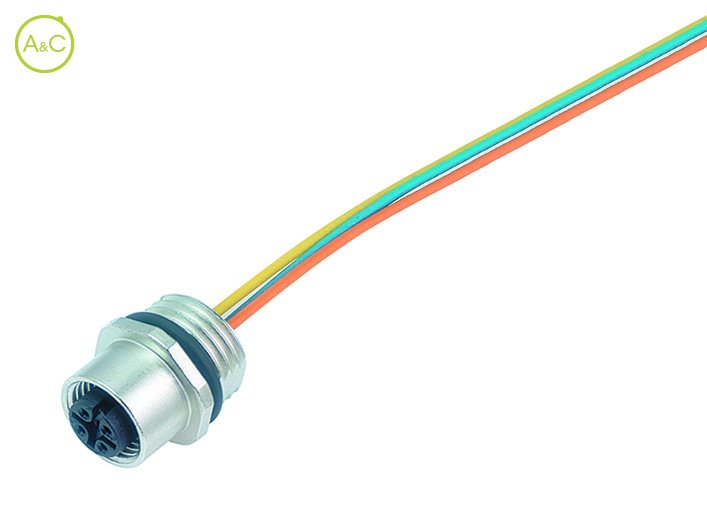

Female panel mount connector

  • With single wires, 0,25mm²

Number Of Poles

  • 4
Article Number 09 3732 00 04 09 3732 700 04
Connector Diameter 18 mm 18 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-D) Screw (M12-D)
Termination Single wires Single wires
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing Zinc diecasting nickel plated Zinc diecasting nickel plated
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
