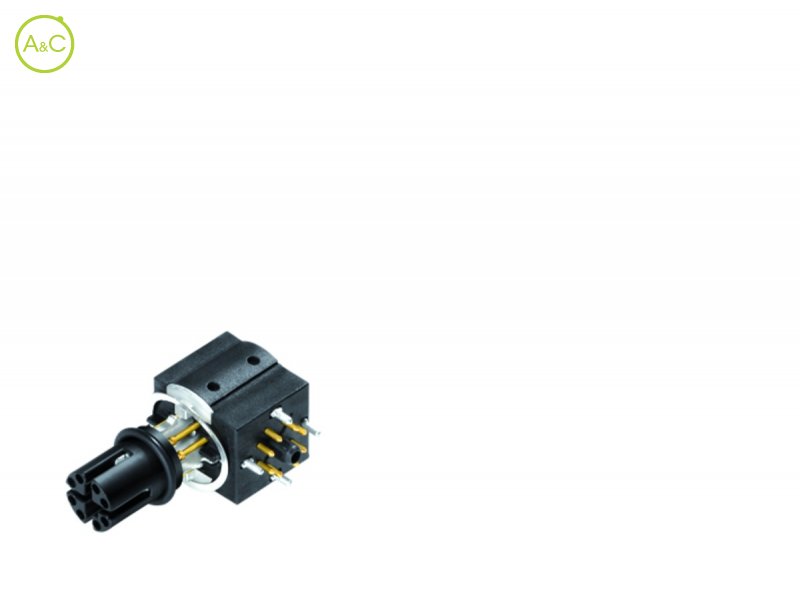

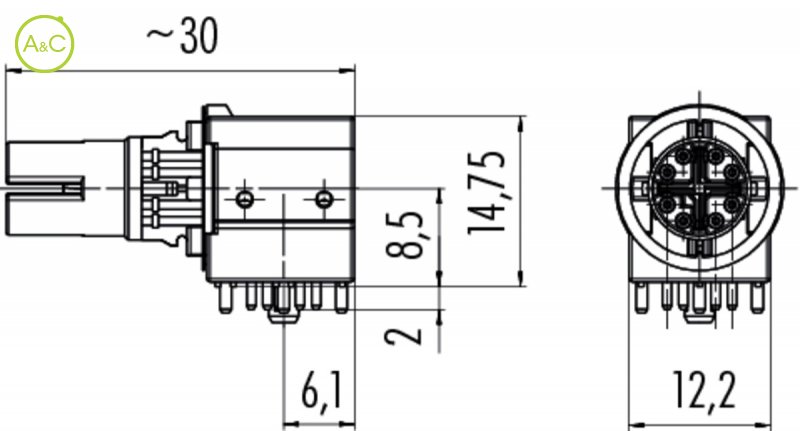

Contact insert, dip solder, angled

  • For mounting in customer housing
  • UL-approval

Number Of Poles

  • 8
Article Number 09 3782 202 08
Number Of Contacts 8 contacts
Connector Locking System Screw (M12-X)
Termination Dip solder
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 50 V AC 60 V DC
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 0.5 A
Max. Contact Resistance 10 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
