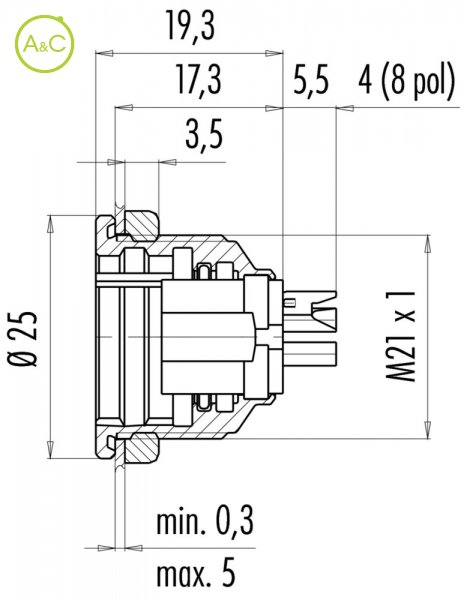

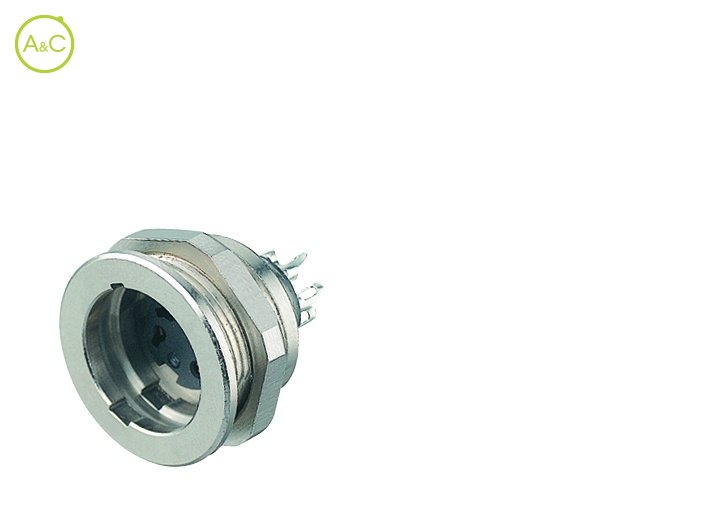

Female panel mount connector

  • IP40

Number Of Poles

  • 3 DIN
  • 4
  • 5
  • 6 DIN
  • 7
  • 8 DIN
  • 12
  • 14
  • 19
Article Number 09 4808 25 03
Connector Diameter 25 mm
Number Of Contacts 3 DIN contacts
Connector Locking System Push-Pull
Termination Solder
Wire Section 0.75 mm²
Protection Degree IP40
Mating Cycles >1000 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250 (32)
Rated Impuls Voltage 1500 V
Pollution Degree 1 (2)*
Overvoltage Categorie I (II)*
Material Group III
Rated Current (40°) 7 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PBT (UL 94 V-0)
Material Of Housing CuZn (Brass nickel plated)
Remark * *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
