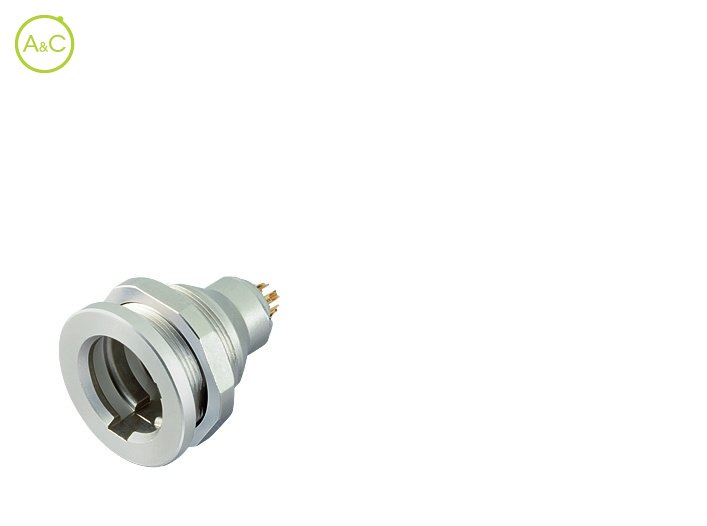

Female panel mount connector

  • IP40

Number Of Poles

  • 3
  • 4
  • 5
  • 7
  • 8
Article Number 09 4908 025 03

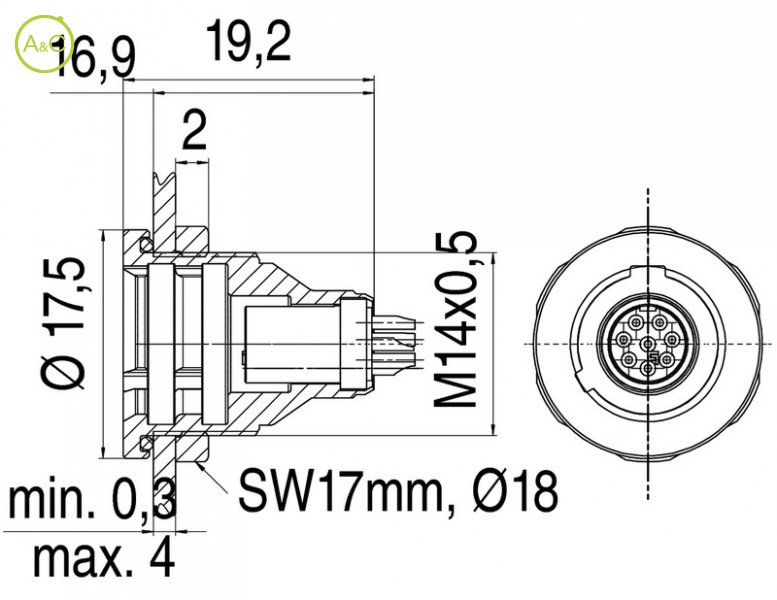

Connector Diameter 17.5 mm
Number Of Contacts 3 contacts
Connector Locking System Push-Pull
Termination Solder
Wire Section 0.25 mm²
Protection Degree IP40
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 2
Overvoltage Categorie I
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PBT/PA
Material Of Housing CuZn (Brass nickel plated)
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
