Adapter

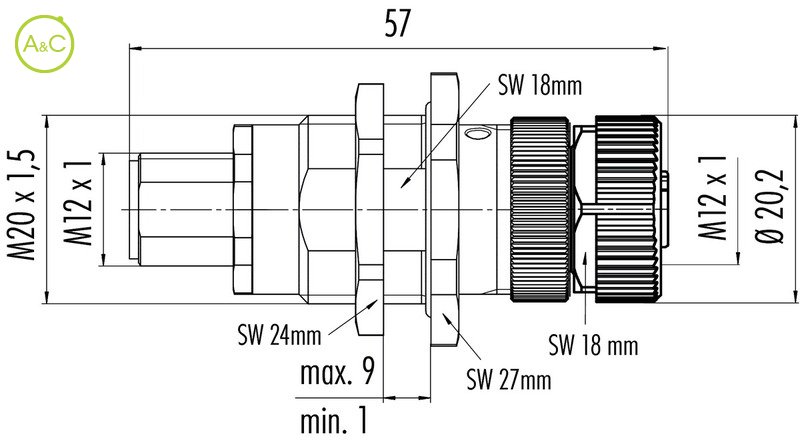

  • Lead-through for control cabinet, shielded Male connector M12 - female connector M12

Number Of Poles

  • 4
  • 5
  • 8
Article Number 09 5240 00 04
Connector Diameter 20.2 mm
Number Of Contacts 4 contacts
Connector Locking System Screw
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 HB)
Material Of Housing Zinc diecasting nickel plated/brass nickel plated
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
