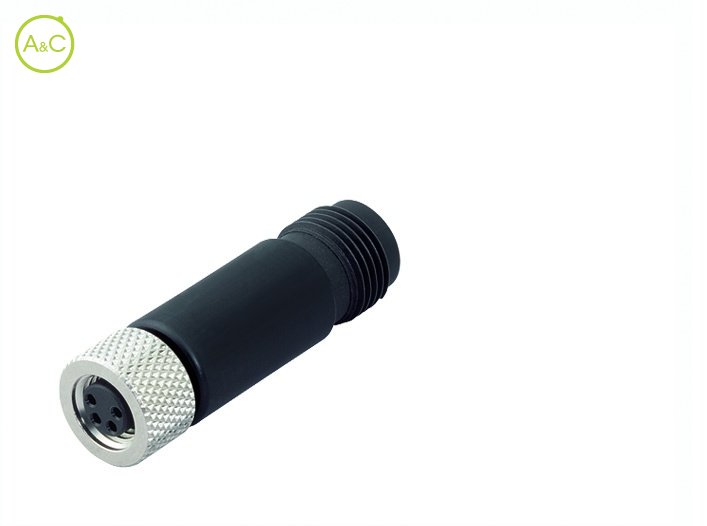

Adapter
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Binder
Number Of Poles
- 3
- 4

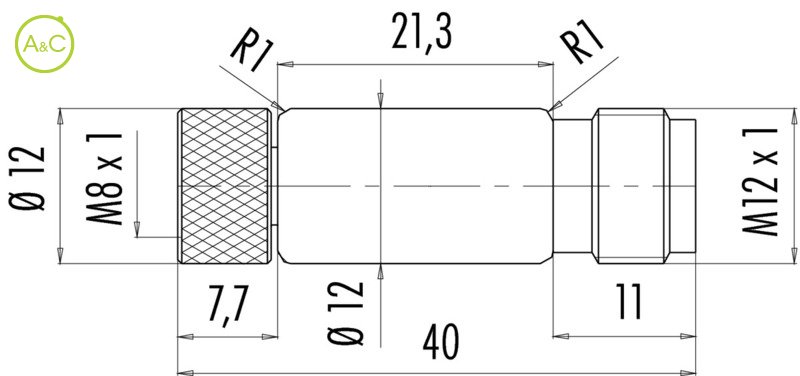

| Article Number | 09 5280 00 03 |
| Connector Diameter | 12 mm |
| Number Of Contacts | 3 contacts |
| Connector Locking System | Screw |
| Protection Degree | IP67 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 60 |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | Pin CuZn (Brass), Socket (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PUR |
| Material Of Housing | Hot melt |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
