0.250" (6.35mm) Tabs / Quick Disconnect Terminals
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Zierick
Zierick
Packaging
- Loose
- Reeled

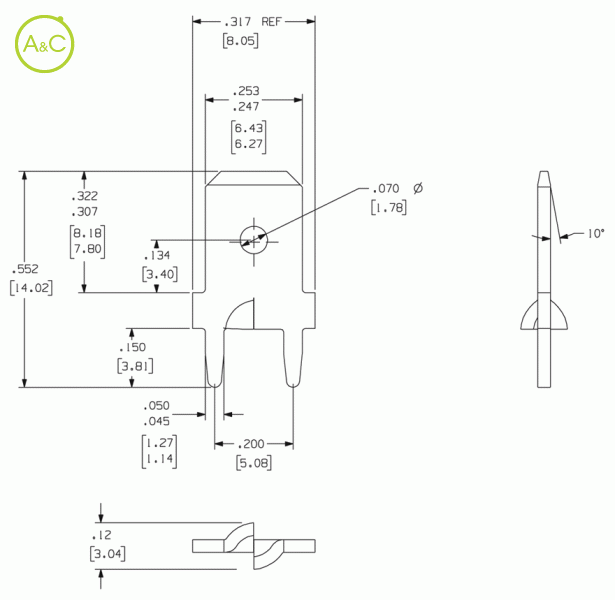

| Article Number | 1021 | 1198 |
| Extra Description | Straight, 14.02 mm high | Straight, 14.02 mm high |
| Dim A | 0.134" (3.40mm) | 0.160" (4.06mm) |
| Material Thickness / Type | 0.032" (0.81mm) C26000 Brass | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper | 100% Tin over Copper |
| Current Rating Ul | 20 Amperes | 20 Amperes |
| Current Rating C-ul | 20 Amperes | 20 Amperes |
| Ul File Number | E146208 | E146208 |
| Applicator System | Loose: ZPT81-A Reeled: Model 9700, 9700 XY | Loose: ZPT81-A Reeled: Model 9700, 9700 XY |
| Mounting Type | Outward or Inward Splay | Outward or Inward Splay |
| Mounting Hole Diameter | 0.058" ±0.003" (1.47mm ±0.076mm) | 0.058" ±0.003" (1.47mm ±0.076mm) |
| Feature 'b' | 0.070" (1.78mm) HOLE | 0.070" (1.78mm) DIMPLE |
| Pieces Per Reel (loose Part No.) | NA | NA |
| Pieces Per Reel (reeled Part No.) | / | / |
| Datenblatt | Download Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
