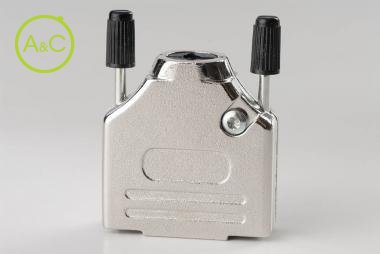

Diecast hood with straight and side cable output and screw locking

  • Hoods as set in bag
Download Datenblatt

Number Of Poles

  • 15
  • 25
  • 37
Article Number 109 09 DC 001 109 15 DC 001
Number Of Contacts 9 15
Thread UNC-4-40 UNC-4-40
Extra Information Two piece diecast hood Suitable for cable diameters up to 10 mm very economical solution Two piece diecast hood Suitable for cable diameters up to 10 mm very economical solution
Locking Style knurled screw knurled screw
Cable Exit Straight 180° Straight 180°
Cable Fixing Cable clamp intern (al) Cable clamp intern (al)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
