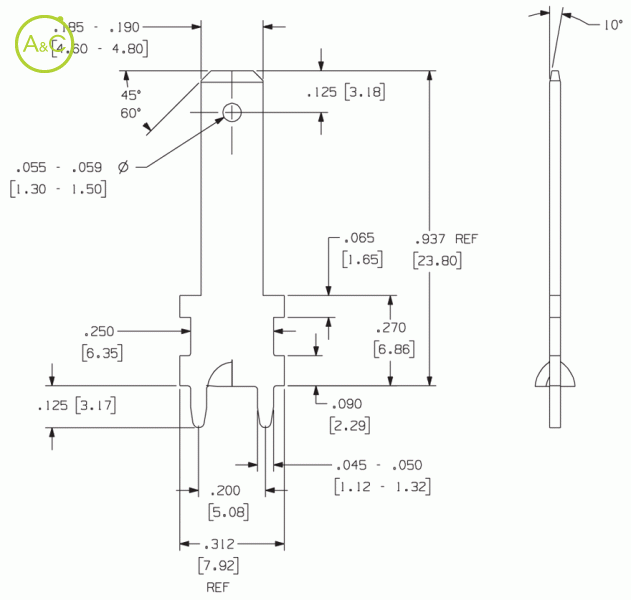

0.187" (4.75mm) Tabs / Quick Disconnect Terminals

Straight, 28.88 mm high

1172

1172

1172

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Packaging

Loose
Reeled

Article Number	1172
Extra Description	Straight, 28.88 mm high
Material Thickness / Type	0.032" (0.81mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating Ul	20 Amperes
Current Rating C-ul	20 Amperes
Ul File Number	E146208
Applicator System	Loose: ZPT81-A Reeled: Model 9700, 9700 XY
Mounting Type	Outward or Inward Splay
Mounting Hole Diameter	0.058" ±0.003" (1.47mm ±0.076mm)
Pieces Per Reel (loose Part No.)	NA
Pieces Per Reel (reeled Part No.)	/
Datenblatt	Download Datenblatt

Article Number	6172
Extra Description	Straight, 28.88 mm high
Material Thickness / Type	0.032" (0.81mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating Ul	20 Amperes
Current Rating C-ul	20 Amperes
Ul File Number	E146208
Applicator System	Loose: ZPT81-A Reeled: Model 9700, 9700 XY
Mounting Type	Outward or Inward Splay
Mounting Hole Diameter	0.058" ±0.003" (1.47mm ±0.076mm)
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (reeled Part No.)	5000
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
