IDC (Insulation Displacement Connector) For #30-26 AWG Wire
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Zierick
Zierick
Packaging
- Loose
- Reeled
| Article Number | 1182 | 1183 |
| Extra Description | with single hole | with single hole |

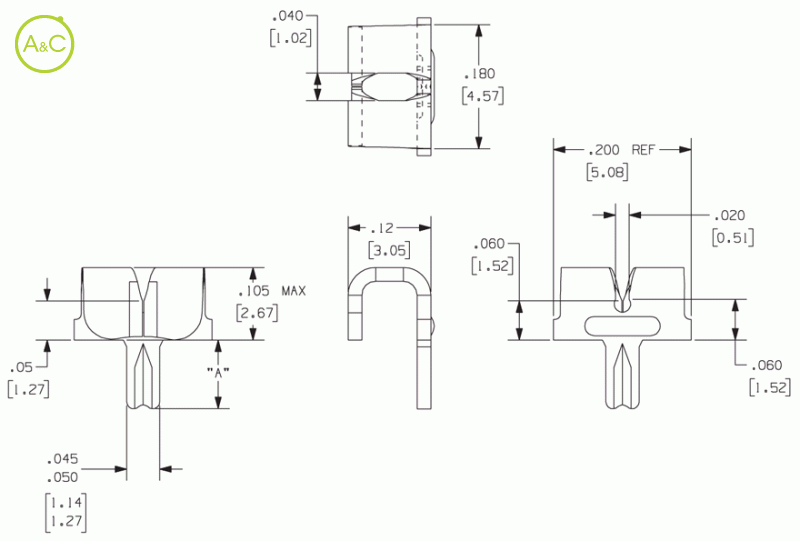

| Dim A | 0.070" (1.78mm) | 0.100" (2.54mm) |
| Material Thickness / Type | 0.020" (0.51mm) C26000 Brass | 0.020" (0.51mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper | 100% Tin over Copper |
| Current Rating | 10 Amperes | 10 Amperes |
| Applicator System | Loose: WTP-4ALL Reeled: Model 9700, 9700 XY Wire Termination: Consult factory. | Loose: WTP-4ALL Reeled: Model 9700, 9700 XY Wire Termination: Consult factory. |
| Mounting Type | Split Leg Splay for 0.031" (0.79mm) thick PCB | Split Leg Splay for 0.062" (1.57mm) thick PCB |
| Mounting Hole Diameter | Single Hole 0.055" ±0.003" (1.40mm ±0.076mm) | Single Hole 0.055" ±0.003" (1.40mm ±0.076mm) |
| Wire Gauge Range | #30-26 AWG | #30-26 AWG |
| Pieces Per Reel (loose Part No.) | NA | NA |
| Pieces Per Reel (reeled Part No.) | / | / |
| Datenblatt | Download Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
