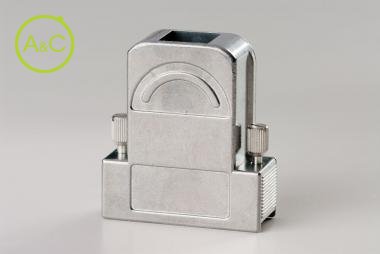

Compact DVI 360° EMI/RFI full metal hood with knurled locking screws

  • Hoods as a set in plastic bag
  • Internal cable clamp standard
Download Datenblatt

Number Of Poles

  • 15
Article Number 119156DC25001 119157DC25001
Number Of Contacts 15 15
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Thread UNC-4-40 M3
Material zn alloy zn alloy
Locking Style Knurled screw Knurled screw
Cable Exit Straight 180° Straight 180°
Cable Fixing Cable clamp internal (al) Cable clamp internal (al)
Cable Diameter Internal Cable Clamp 4-12 4-12
Material/surface Locking Screws Diecast ST tin plated ST tin plated
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
