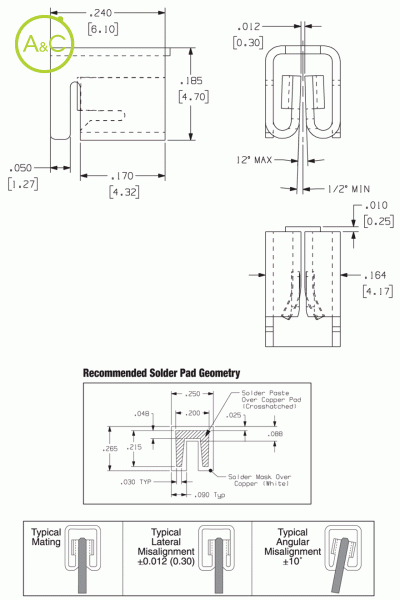

SMT Bottom or Horizontal Entry Universal Tab Receptacles

1238

1238

1238

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Packaging

Loose
Reeled
Small reeled
Taped

Article Number	1238
Mating Terminal Size	0.025" (0.64mm) to 0.032" (0.81mm) thick
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	25 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder
Pieces Per Reel (loose Part No.)	NA
Pieces Per Reel (reeled Part No.)	/
Pieces Per Reel (taped Part No.)	/
Pieces Per Reel (small Reel Part No.)	/
Datenblatt	Download Datenblatt

Article Number	6238
Mating Terminal Size	0.025" (0.64mm) to 0.032" (0.81mm) thick
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	25 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (reeled Part No.)	900
Pieces Per Reel (taped Part No.)	/
Pieces Per Reel (small Reel Part No.)	/
Datenblatt	Download Datenblatt

Article Number	1238T-SR	1238T-KT-SR
Mating Terminal Size	0.025" (0.64mm) to 0.032" (0.81mm) thick	0.025" (0.64mm) to 0.032" (0.81mm) thick
Material Thickness / Type	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper	100% Tin over Copper
Current Rating	25 Amperes	25 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder
Pieces Per Reel (loose Part No.)	/	/
Pieces Per Reel (reeled Part No.)	/	/
Pieces Per Reel (taped Part No.)	/	/
Pieces Per Reel (small Reel Part No.)	100	100
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	1238T	1238-BMT	1238T-KT
Mating Terminal Size	0.025" (0.64mm) to 0.032" (0.81mm) thick	0.025" (0.64mm) to 0.032" (0.81mm) thick	0.025" (0.64mm) to 0.032" (0.81mm) thick
Material Thickness / Type	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper	100% Tin over Copper	100% Tin over Copper
Current Rating	25 Amperes	25 Amperes	25 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder	Surf-Shooter SMT ™ Continuous Strip Feeder P/N 6238 Standard 16mm Tape Feeder
Pieces Per Reel (loose Part No.)	/	/	/
Pieces Per Reel (reeled Part No.)	/	/	/
Pieces Per Reel (taped Part No.)	900	1500	900
Pieces Per Reel (small Reel Part No.)	/	/	/
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
