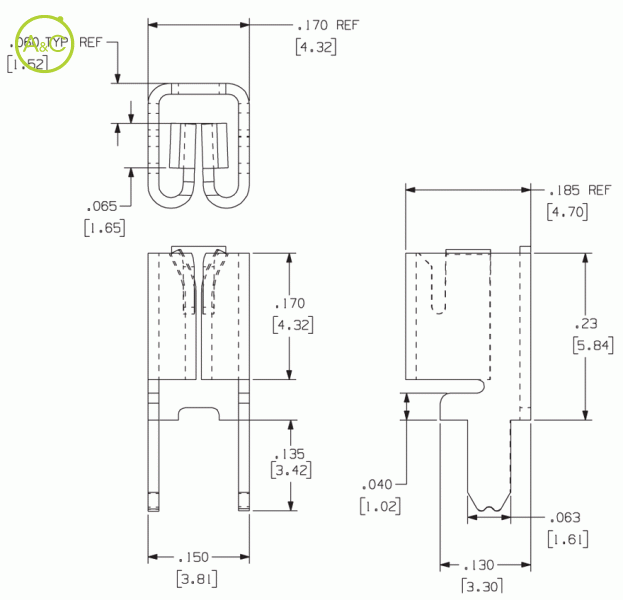

Universal Tab Receptacles for 0.025" (0.64mm) and 0.032" (0.81mm) Thick Terminals

Mating type top and horizontal
Mounting type is Inward or Outward Splay

1290

1290

1290

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Packaging

Loose
Reeled

Article Number	1290
Extra Description	Mounting type is Inward or Outward Splay
Mating Terminal Size	0.025" (0.64mm) and 0.032" (0.81mm)
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	20 Amperes
Applicator System	Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mounting Type	Inward or Outward Splay
Mounting Hole Diameter	2 holes 0.066" ±0.003" (1.68mm ±0.76mm) on 0.134" ±0.003" (3.40mm ±0.76mm) centers
Resistance Rating	10mOhm Max
Mating Entry	Top and Horizontal
Temperature Rating	-65° to 85°C
Pieces Per Reel (loose Part No.)	NA
Pieces Per Reel (reeled Part No.)	/
Datenblatt	Download Datenblatt

Article Number	6290
Extra Description	Mounting type is Inward or Outward Splay
Mating Terminal Size	0.025" (0.64mm) and 0.032" (0.81mm)
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	20 Amperes
Applicator System	Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mounting Type	Inward or Outward Splay
Mounting Hole Diameter	2 holes 0.066" ±0.003" (1.68mm ±0.76mm) on 0.134" ±0.003" (3.40mm ±0.76mm) centers
Resistance Rating	10mOhm Max
Mating Entry	Top and Horizontal
Temperature Rating	-65° to 85°C
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (reeled Part No.)	4000
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
