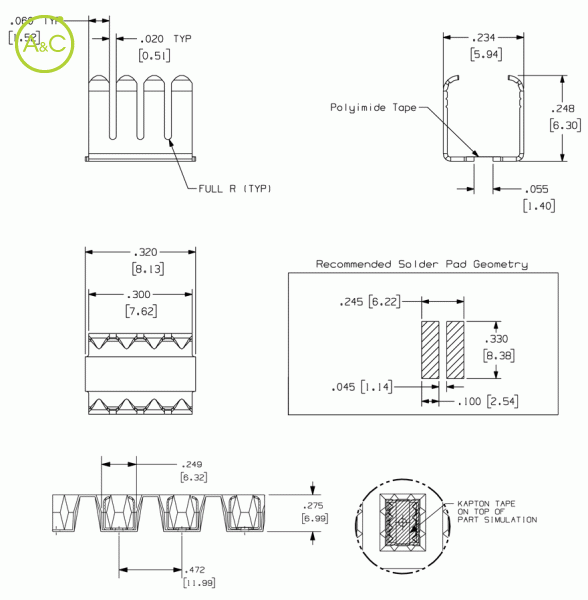

SMT Zip Cord Connectors
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Zierick
Zierick
- General
| Article Number | 1300-T |
| Packaging | Taped |
| Material Thickness / Type | .012 (0,30 mm) C26000 Brass |
| Standard Finish | Pre-finished 100% Matte Tin over Copper. Edges will be bare. |
| Current Rating Ul | 9 amperes |
| Current Rating C-ul | 9 amperes |
| Feeder System | Standard 24mm Tape Feeder |
| Ul File Number | E361770 |
| Crimping System | MP-1000 Crimping Machine (for high volume applications) Versa-Crimp (for low volume applications) |
| Wire Size | Approximately .100"x.200" 18 AWG paired conductor wire |
| Pieces Per Reel (taped Part No.) | 800 |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
