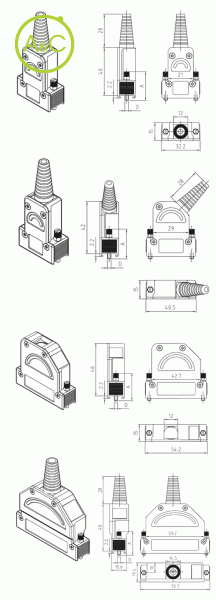

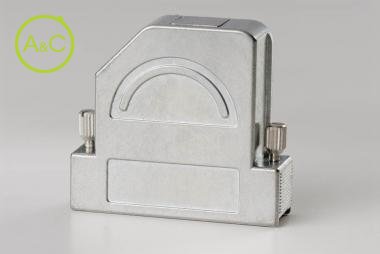

Quick mount Die cast hoods with knurled screw locking cable output 180° and 135°
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Provertha
![Provertha](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 9
- 15
Article Number | 147090DC50001 | 147091DC50001 |
Number Of Contacts | 9 | 9 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
Thread | UNC 4-40 | M3 |
Material | zn alloy | zn alloy |
Locking Style | knurled screw | knurled screw |
Cable Exit | Straigt 180° Angled: 1x 45° | Straigt 180° Angled: 1x 45° |
Cable Fixing | Cable clamp extern (al) crimping flange | Cable clamp extern (al) crimping flange |
Cable Outputs | 1 | 1 |
Cable Diameter External Cable Clamp | 4-14 | 4-14 |
Cable Diameter Crimping Flange | 2,7-8,7 | 2,7-8,7 |
Material Knurled Screws, Cover Screws And Cable Clamp Screws | ST tin plated | ST tin plated |
Compact Thickness For 9-25 Poles For Installation In Sub-devices With 3 Te | 15 | 15 |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
