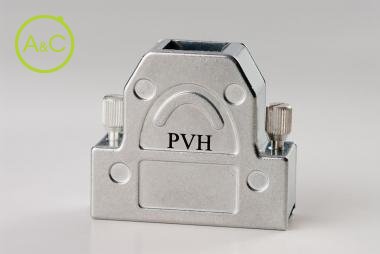

Diecast hoods with screw locking
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Provertha
![Provertha](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 9
- 15
- 25
- 37
- 50
Article Number | 17 09 DC 25 000 |
Number Of Contacts | 9 |
Upper Temperature | +90 °C |
Lower Temperature | -20 °C |
Thread | UNC 4-40 |
Remark | Crimping flange needs te be ordered seperately |
Material | Zn alloy |
Extra Information | Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged |
Locking Style | knurled screw |
Cable Exit | Straight 180° Angled 25-50p: 2x30° |
Cable Fixing | clamp intern (al) |
Cable Diameter Internal Cable Clamp | 4-10 |
Material/surface Locking Screws Diecast | St tin plated |
Material/surface Cover Screws | ST Zinc plated |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
