SMT Jumpers

jumper length is 7,62/12,3/38,1/14,9/20,0 mm

6233-001

6233-001

6233-001

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Jumper Length

0.300"
0.485"
0.585"
0.787"
1.500"

Article Number	6233-001
Packaging	Reeled
Extra Description	jumper length is 7,62/12,3/38,1/14,9/20,0 mm

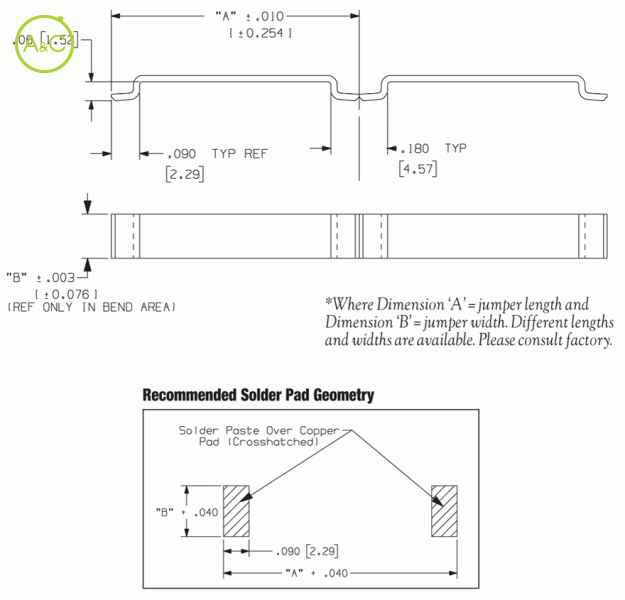

Dim A	0.300" (7.62mm)
Dim B	0.075" (1.91mm)
Material Thickness / Type	0.020" (0.51mm) C11000 Copper
Standard Finish	100% Tin over Copper
Feeder System	Standard 24mm Tape Feeder
Datenblatt	Download Datenblatt

Article Number	6233-002
Packaging	Reeled
Extra Description	jumper length is 7,62/12,3/38,1/14,9/20,0 mm
Dim A	0.485" (12.3mm)
Dim B	0.075" (1.91mm)
Material Thickness / Type	0.020" (0.51mm) C11000 Copper
Standard Finish	100% Tin over Copper
Feeder System	Standard 24mm Tape Feeder
Datenblatt	Download Datenblatt

Article Number	6233-585-200
Packaging	Reeled
Extra Description	jumper length is 7,62/12,3/38,1/14,9/20,0 mm
Dim A	0.585" (14.9mm)
Dim B	0.200" (5.08mm)
Material Thickness / Type	0.020" (0.51mm) C11000 Copper
Standard Finish	100% Tin over Copper
Feeder System	Standard 24mm Tape Feeder
Datenblatt	Download Datenblatt

Article Number	6233-787-140	6233-787-140-T
Packaging	Reeled	Taped
Extra Description	jumper length is 7,62/12,3/38,1/14,9/20,0 mm	jumper length is 7,62/12,3/38,1/14,9/20,0 mm
Dim A	0.787" (20.0mm)	0.787" (20.0mm)
Dim B	0.140" (3.56mm)	0.140" (3.56mm)
Material Thickness / Type	0.020" (0.51mm) C11000 Copper	0.020" (0.51mm) C11000 Copper
Standard Finish	100% Tin over Copper	100% Tin over Copper
Feeder System	Standard 24mm Tape Feeder	Standard 24mm Tape Feeder
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	6233-310-140
Packaging	Reeled
Extra Description	jumper length is 7,62/12,3/38,1/14,9/20,0 mm
Dim A	1.500" (38.1mm)
Dim B	0.075" (1.91mm)
Material Thickness / Type	0.020" (0.51mm) C11000 Copper
Standard Finish	100% Tin over Copper
Feeder System	Standard 24mm Tape Feeder
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
