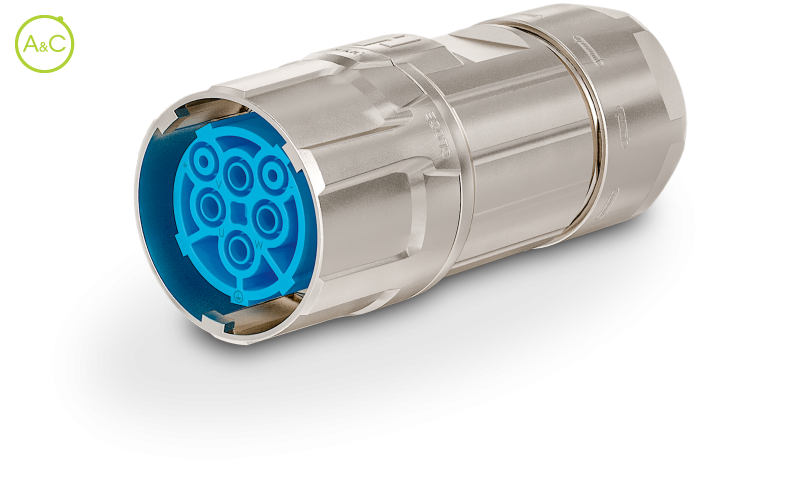

Twilock-S, Straight Connector, Female Thread

Haben Sie Fragen zu diesem Produkt?

Download Datenblatt

Weitere Informationen über diese Marke:

Connector Diameter	46 mm
Number Of Contacts	6
Connector Locking System	Twilock
Protection Degree	IP67/IP69K
Mating Cycles	>500 times
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Plating	Nickel plated
Remark *	Compatible with Speedtec
Material	Copper-Zinc alloy/ Die casting
Required Crimp Contacts	"2 x 2 mm: 7.015.952.002 (1 - 4 mm²) & 4 x 3,6 mm: 7.015.953.602 (1,5 - 4 mm²), 7.015.953.612 (6 mm²), 7.015.953.622 (10 mm²), 7.015.953.632 (16 mm²)"
Contact Diameter (a)	2
Contact Diameter (b)	3,6
Wire Section (a)	1-4 mm²
Wire Section (b)	1,5-16 mm²
Nominal Current (a)	28 A
Nominal Current (b)	55 A
Nominal Voltage (degree Of Pollution 3) (a)	300 V ~
Nominal Voltage (degree Of Pollution 3) (b)	600 V ~
Test Voltage (a)	2500 V ~
Test Voltage (b)	4000 V ~
Insulation Resistance	> 1013 MΩ
Max. Contact Resistance (a)	3 MΩ
Max. Contact Resistance (b)	1 MΩ

Connector Diameter	46 mm
Number Of Contacts	6
Connector Locking System	Twilock
Protection Degree	IP67/IP69K
Mating Cycles	>500 times
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Plating	Nickel plated
Remark *	Compatible with Speedtec
Material	Copper-Zinc alloy/ Die casting
Required Crimp Contacts	"2 x 2 mm: 7.015.952.002 (1 - 4 mm²) & 4 x 3,6 mm: 7.015.953.602 (1,5 - 4 mm²), 7.015.953.612 (6 mm²), 7.015.953.622 (10 mm²), 7.015.953.632 (16 mm²)"
Contact Diameter (a)	2
Contact Diameter (b)	3,6
Wire Section (a)	1-4 mm²
Wire Section (b)	1,5-16 mm²
Nominal Current (a)	28 A
Nominal Current (b)	55 A
Nominal Voltage (degree Of Pollution 3) (a)	300 V ~
Nominal Voltage (degree Of Pollution 3) (b)	600 V ~
Test Voltage (a)	2500 V ~
Test Voltage (b)	4000 V ~
Insulation Resistance	> 1013 MΩ
Max. Contact Resistance (a)	3 MΩ
Max. Contact Resistance (b)	1 MΩ

Connector Diameter	46 mm
Number Of Contacts	6
Connector Locking System	Twilock
Protection Degree	IP67/IP69K
Mating Cycles	>500 times
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Plating	Nickel plated
Remark *	Compatible with Speedtec
Material	Copper-Zinc alloy/ Die casting
Required Crimp Contacts	"2 x 2 mm: 7.015.952.002 (1 - 4 mm²) & 4 x 3,6 mm: 7.015.953.602 (1,5 - 4 mm²), 7.015.953.612 (6 mm²), 7.015.953.622 (10 mm²), 7.015.953.632 (16 mm²)"
Contact Diameter (a)	2
Contact Diameter (b)	3,6
Wire Section (a)	1-4 mm²
Wire Section (b)	1,5-16 mm²
Nominal Current (a)	28 A
Nominal Current (b)	55 A
Nominal Voltage (degree Of Pollution 3) (a)	300 V ~
Nominal Voltage (degree Of Pollution 3) (b)	600 V ~
Test Voltage (a)	2500 V ~
Test Voltage (b)	4000 V ~
Insulation Resistance	> 1013 MΩ
Max. Contact Resistance (a)	3 MΩ
Max. Contact Resistance (b)	1 MΩ

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
