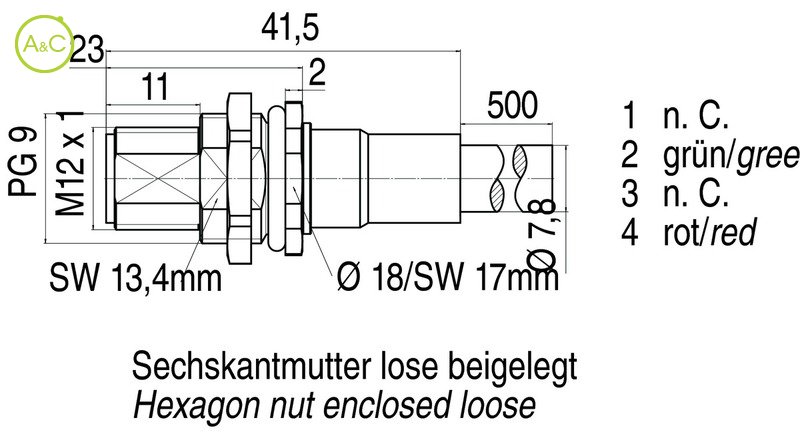

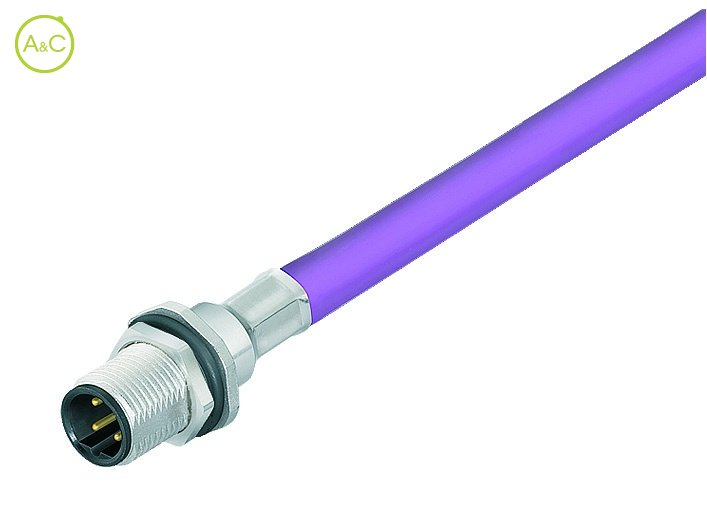

Male panel mount connector

  • Front fastened, with PROFIBUS-cable, shielded

Number Of Poles

  • 2
Article Number 70 4433 247 04
Connector Diameter 18 mm
Number Of Contacts 2 contacts
Connector Locking System Screw (M12-B)
Termination Cable
Wire Section 0.25 mm²
Cable Length 0.5 mm
Protection Degree IP68*
Mating Cycles >100 times
Upper Temperature +60 °C
Lower Temperature -20 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Brass / Zinc diecasting nickel plated
Cable Diameter 7,8 mm
Fixing Thread PG9
Remark * *When built-in, connected and locked with counterpart
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
