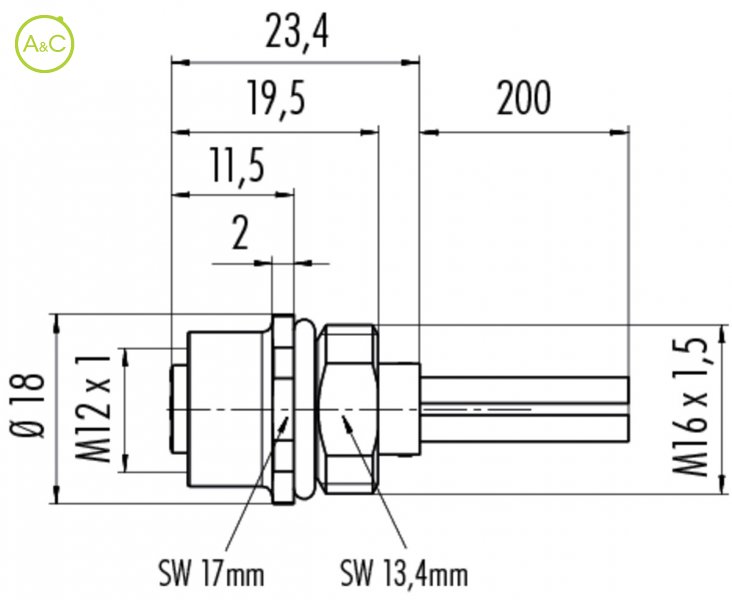

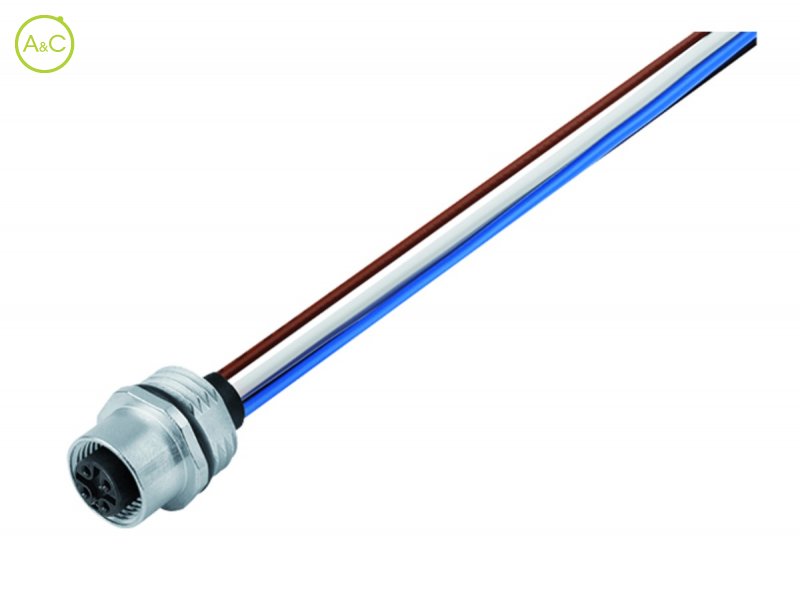

Female panel mount connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Binder
Number Of Poles
- 4
| Article Number | 76 0232 0015 00004 0200 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 4 contacts |
| Connector Locking System | Screw (M12-A) |
| Termination | Single wires |
| Wire Section | 1.5 mm² |
| Protection Degree | IP68 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 250 |
| Rated Impuls Voltage | 2500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 8 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Wire Gauge | 16 AWG |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
