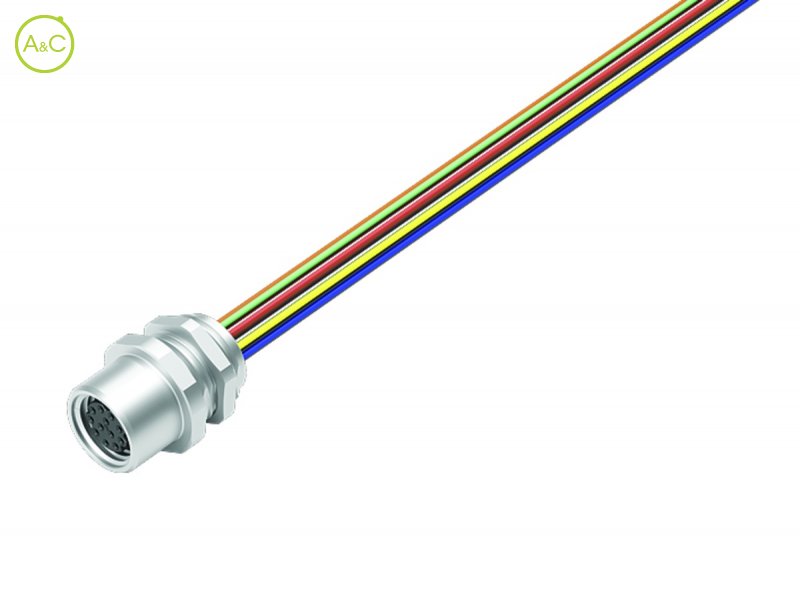

Female panel mount connector

  • With single wires

Number Of Poles

  • 12
Article Number 76 6218 1118 00012 0200
Connector Diameter 12.6 mm
Number Of Contacts 12 contacts
Connector Locking System Screw (M8)
Termination Single wires
Wire Section 0.09 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 30
Rated Impuls Voltage 500 V
Pollution Degree 2
Overvoltage Categorie II
Material Group I
Rated Current (40°) 1 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Housing Zinc die-cast nickel plated
Wire Gauge 28 AWG
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
