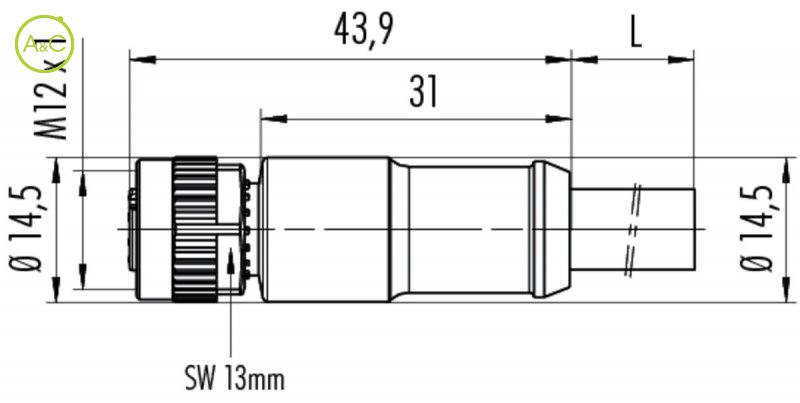

Female cable connector

  • Moulded, PUR
  • UL-approval

Number Of Poles

  • 4
Article Number 77 0606 0000 50704 0200 77 0606 0000 50704 0500
Color Black Black
Connector Diameter 14.5 mm 14.5 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Moulded Moulded
Wire Section 1.5 mm² 1.5 mm²
Protection Degree IP69K IP69K
Mating Cycles >100 times >100 times
Upper Temperature +90 °C +90 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 8 A 8 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Insulation Single Lead PP PP
Single Lead Structure 42x0,1 42x0,1
Cable Sheath Ø 5.4 mm 5.4 mm
Conductor Resistance 60 Ω/km 60 Ω/km
Bending Radius Cable Fixed min. 5xD min. 5xD
Bending Radius Cable Movable min. 10xD min. 10xD
Fixing Thread M12x1,5 M12x1,5
Wire Gauge 16 AWG 16 AWG
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
