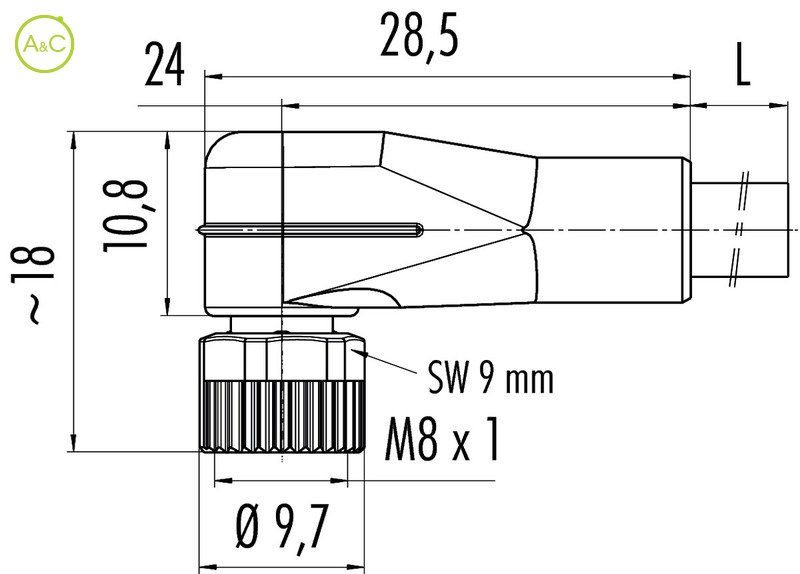

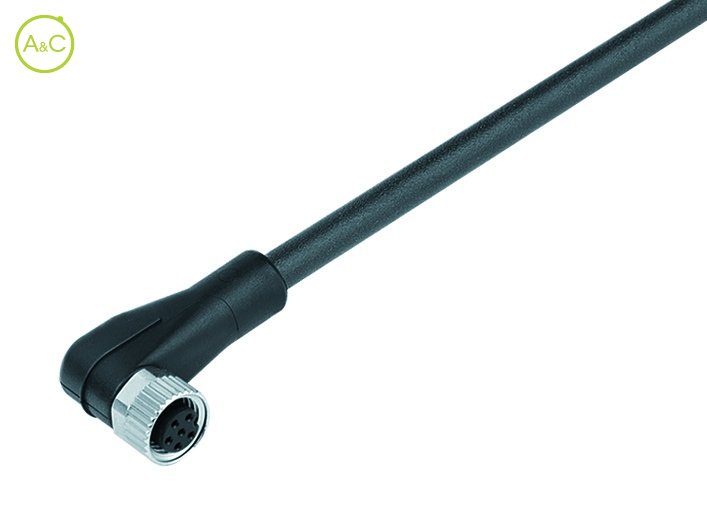

Female angled connector

Moulded, screw version, M8x1

77-3408-0000-20003-0200

77-3408-0000-20003-0200

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

3
4
6
8

Article Number	77 3408 0000 20003 0200	77 3408 0000 50003 0200
Old Article Number	79 3408 42 03	79 3408 52 03
Connector Diameter	9.7 mm	9.7 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M8)	Screw (M8)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²
Cable Length	2 mm	2 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	60	60
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	4,5 mm	4,5 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3408 0000 20004 0200	77 3408 0000 50004 0200
Old Article Number	79 3384 42 04	79 3384 52 04
Connector Diameter	9.7 mm	9.7 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M8)	Screw (M8)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²
Cable Length	2 mm	2 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	30	30
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	4,5 mm	4,5 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3408 0000 50006 0200
Old Article Number	79 3468 52 06
Connector Diameter	9.7 mm
Number Of Contacts	6 contacts
Connector Locking System	Screw (M8)
Termination	Crimp, moulded
Wire Section	0.25 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter	5 mm
Cable Jacket Material	PUR
Insulation Wire	PP
Datenblatt	Download Datenblatt

Article Number	77 3408 0000 20008 0200	77 3408 0000 50008 0200
Old Article Number	79 3806 42 08	79 3806 52 08
Connector Diameter	9.7 mm	9.7 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M8)	Screw (M8)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²
Cable Length	2 mm	2 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	30	30
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	1.5 A	1.5 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	6 mm	6 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PP
Datenblatt	Download Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
