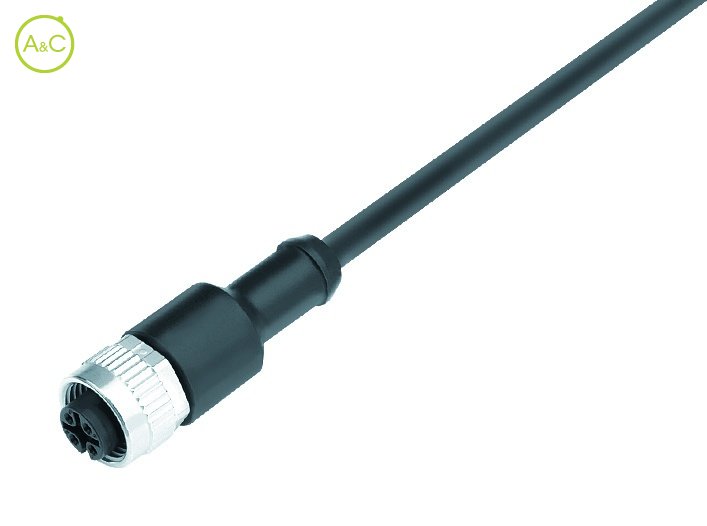

Female cable connector

Moulded

77-3430-0000-20003-0200

77-3430-0000-20003-0200

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

3
4
5
8
12

Article Number	77 3430 0000 20003 0200	77 3430 0000 50003 0200	77 3430 0000 70003 0200
Old Article Number	79 3430 12 04	79 3430 32 04	79 3430 562 04

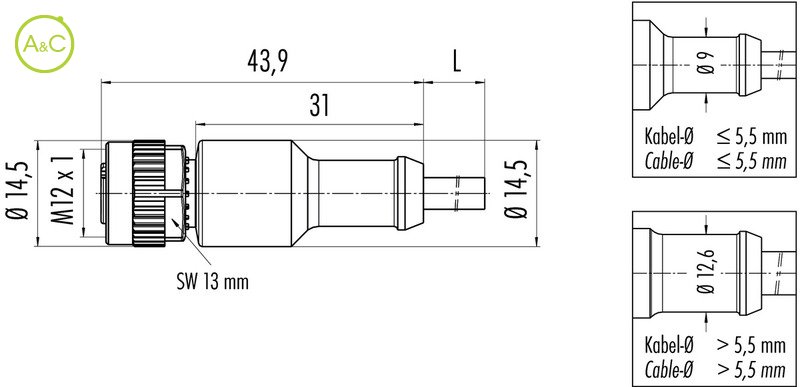

Connector Diameter	14.5 mm	14.5 mm	14.5 mm
Number Of Contacts	3 contacts	3 contacts	3 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded	Crimp, moulded
Wire Section	0.34 mm²	0.34 mm²	0.34 mm²
Cable Length	2 mm	2 mm	2 mm
Protection Degree	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
Rated Voltage	250	250	250
Rated Impuls Voltage	2500 V	2500 V	2500 V
Pollution Degree	3	3	3
Overvoltage Categorie	II	II	II
Material Group	II	II	II
Rated Current (40°)	4 A	4 A	4 A
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR	PUR
Material Of Housing	PUR	PUR	PUR
Cable Diameter	4,5 mm	4,5 mm	4,5 mm
Cable Jacket Material	PVC	PUR	PUR
Insulation Wire	PVC	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3430 0000 20004 0200	77 3430 0000 50004 0200
Old Article Number	79 3430 13 04	79 3430 33 04
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.34 mm²	0.34 mm²
Cable Length	2 mm	2 mm
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	5 mm	5 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3430 0000 20005 0200	77 3430 0000 50005 0200
Old Article Number	79 3440 12 05	79 3440 32 05
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²
Cable Length	2 mm	2 mm
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	5 mm	5 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3430 0000 50608 0200
Old Article Number	79 3480 32 08
Connector Diameter	14.5 mm
Number Of Contacts	*8 contacts
Connector Locking System	Screw (M12-A)
Termination	Crimp, moulded
Wire Section	0.25 mm²
Cable Length	2 mm
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter
Cable Jacket Material	PUR
Insulation Wire	PVC
Datenblatt	Download Datenblatt

Article Number	77 3430 0000 50712 0200
Old Article Number	79 3490 32 12
Connector Diameter	14.5 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M12-A)
Termination	Crimp, moulded
Wire Section	0.25 mm²
Cable Length	2 mm
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	30
Rated Impuls Voltage	500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1 A
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter	7 mm
Cable Jacket Material	PUR
Insulation Wire	PVC
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
