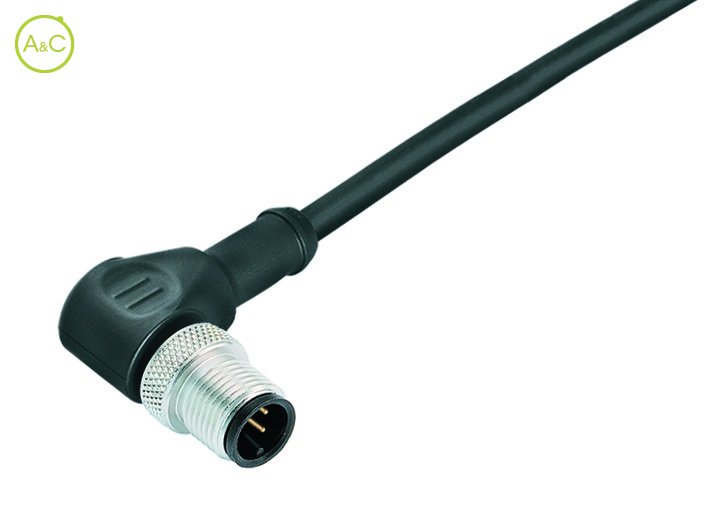

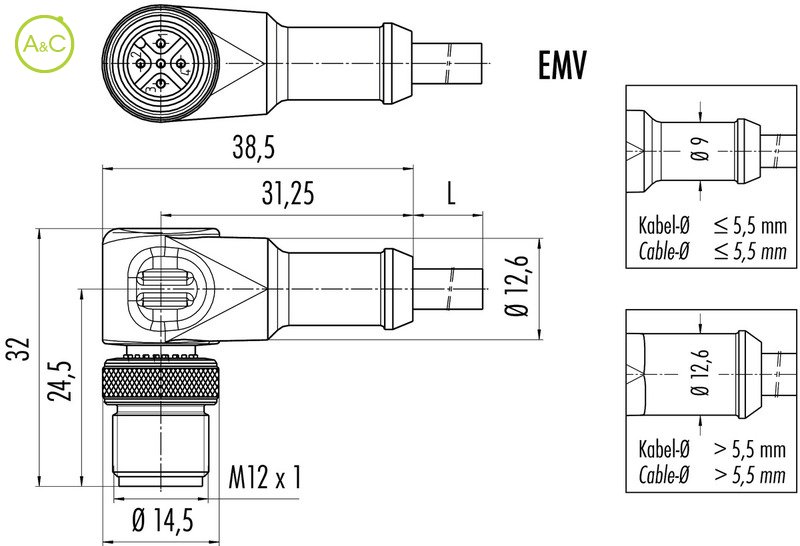

Male angled connector

Moulded, shielded

77-3527-0000-20703-0200

77-3527-0000-20703-0200

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

3
4
5
8

Article Number	77 3527 0000 20703 0200	77 3527 0000 50703 0200
Old Article Number	79 3527 12 04	79 3527 32 04
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.34 mm²	0.34 mm²
Cable Length	2 mm	2 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	5 mm	5 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3527 0000 20704 0200	77 3527 0000 50704 0200
Old Article Number	79 3527 13 04	79 3527 33 04
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.34 mm²	0.34 mm²
Cable Length	2 mm	2 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	5 mm	5 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3527 0000 20705 0200
Old Article Number	79 3557 12 05
Connector Diameter	14.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Crimp, moulded
Wire Section	0.25 mm²
Cable Length	2 mm
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR
Material Of Housing	PUR
Cable Diameter	5,3 mm
Cable Jacket Material	PVC
Insulation Wire	PVC
Datenblatt	Download Datenblatt

Article Number	77 3527 0000 20708 0200	77 3527 0000 50708 0200
Old Article Number		79 3577 32 08
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²
Cable Length	2 mm	2 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	60	60
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	2 A	2 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	6 mm	6 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
