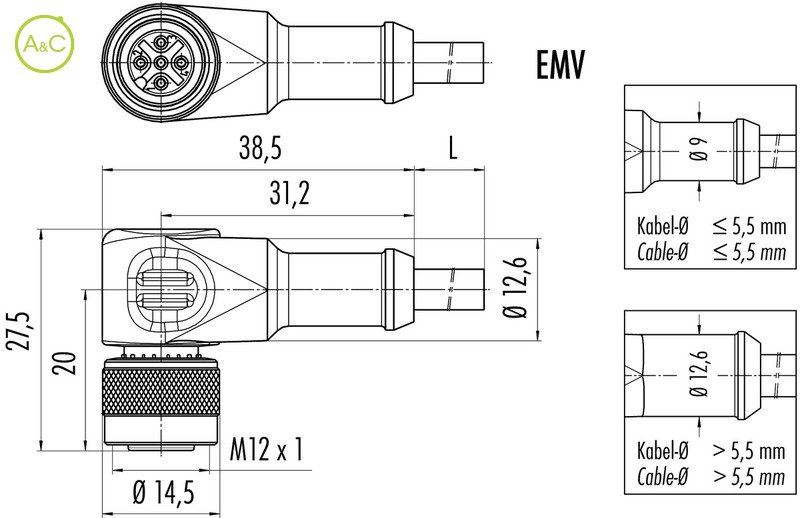

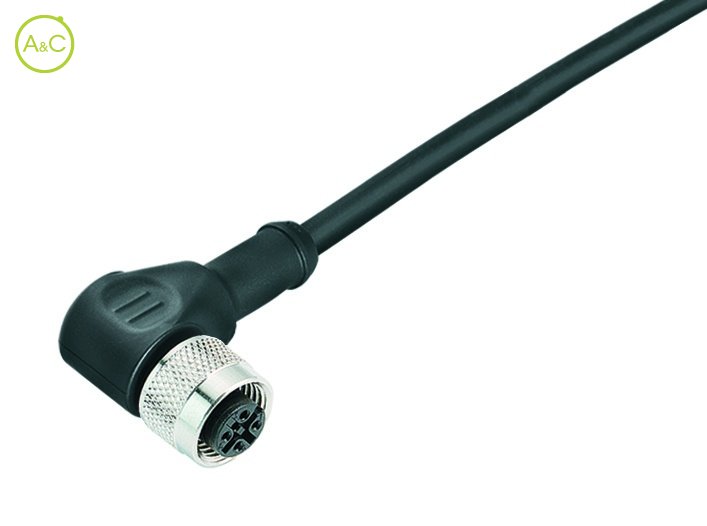

Female angled connector

Moulded, shielded

77-3534-0000-20703-0500

77-3534-0000-20703-0500

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

3
4
5
8

Article Number	77 3534 0000 20703 0500	77 3534 0000 50703 0500
Old Article Number	79 3534 15 04	79 3534 35 04
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.34 mm²	0.34 mm²
Cable Length	5 mm	5 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	5 mm	5 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3534 0000 20704 0500	77 3534 0000 50704 0500
Old Article Number	79 3534 17 04	79 3534 37 04
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.34 mm²	0.34 mm²
Cable Length	5 mm	5 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	5 mm	5 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3534 0000 20705 0500	77 3534 0000 50705 0500
Old Article Number	79 3544 15 05	79 3544 35 05
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²
Cable Length	5 mm	5 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	5,3 mm	5,3 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	77 3534 0000 20708 0500	77 3534 0000 50708 0500
Old Article Number		79 3584 35 08
Connector Diameter	14.5 mm	14.5 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Crimp, moulded	Crimp, moulded
Wire Section	0.25 mm²	0.25 mm²
Cable Length	5 mm	5 mm
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	60	60
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	2 A	2 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR	PUR
Material Of Housing	PUR	PUR
Cable Diameter	6 mm	6 mm
Cable Jacket Material	PVC	PUR
Insulation Wire	PVC	PVC
Datenblatt	Download Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
