Steckverbinder
Zurück zur Projektübersicht

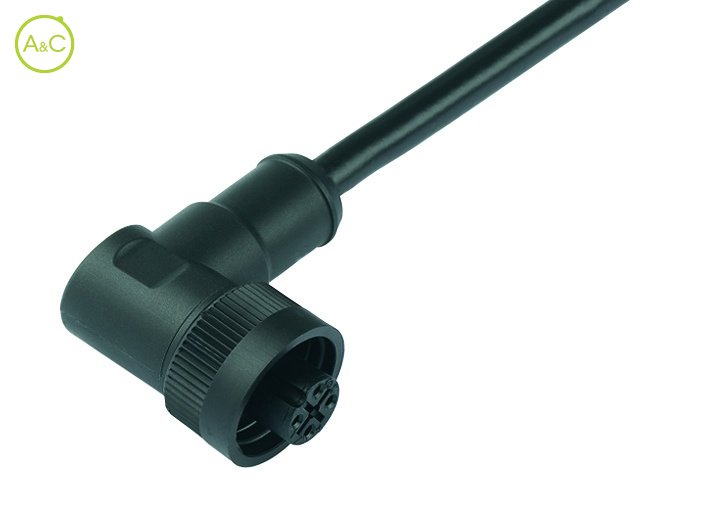

Female angled connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
![Binder](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 3+PE
- 6+PE
Article Number | 79 0234 20 04 |

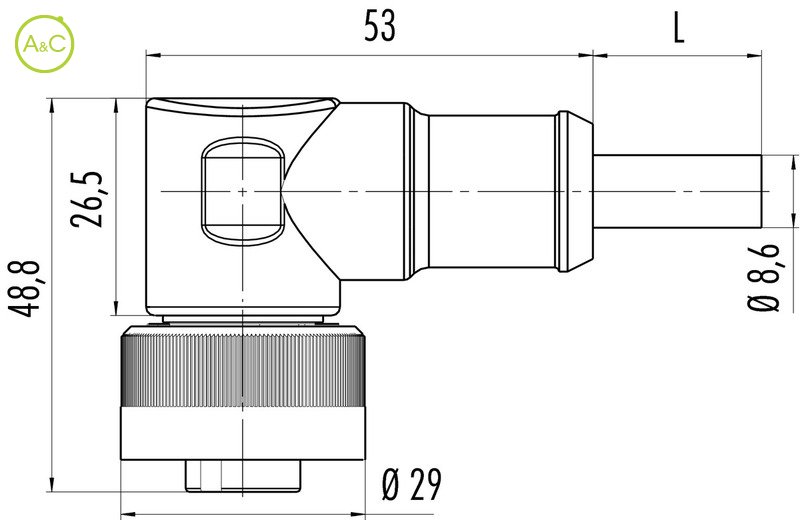

Connector Diameter | 29 mm |
Number Of Contacts | 3+PE contacts |
Connector Locking System | Screw (RD24) |
Termination | Crimp, moulded |
Wire Section | 4 x 1,5 mm² |
Cable Length | 2 mm |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 400 |
Rated Impuls Voltage | 6000 V |
Pollution Degree | 3 |
Overvoltage Categorie | III |
Material Group | III |
Rated Current (40°) | 16 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Ag (Silver) |
Material Of Insert | PA 12 |
Material Of Housing | PUR |
Cable Diameter | 8,6 mm |
Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
