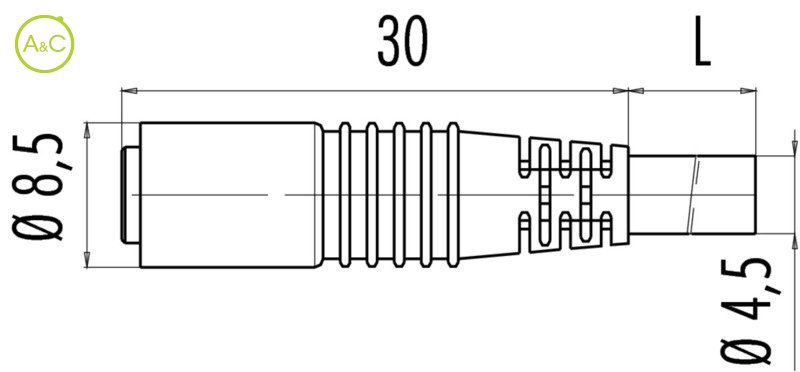

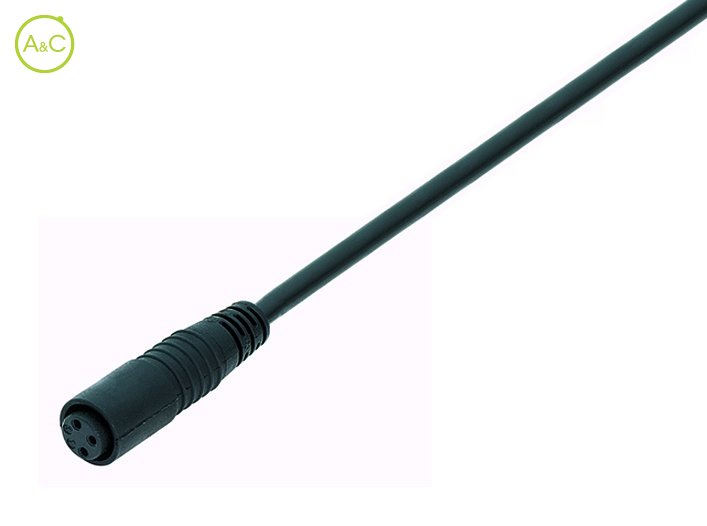

Female cable connector

  • Moulded, snap-in version, 8mm

Number Of Poles

  • 3
  • 4
Article Number 79 3410 05 03 79 3410 15 03 79 3410 45 03 79 3410 55 03
Connector Diameter 9 mm 9 mm 9 mm 9 mm
Number Of Contacts 3 contacts 3 contacts 3 contacts 3 contacts
Connector Locking System Snap-in Snap-in Snap-in Snap-in
Termination Crimp, moulded Crimp, moulded Crimp, moulded Crimp, moulded
Wire Section 0.14 mm² 0.14 mm² 0.25 mm² 0.25 mm²
Cable Length 5 mm 5 mm 5 mm 5 mm
Protection Degree IP65 IP65 IP65 IP65
Mating Cycles >50 times >50 times >50 times >50 times
Upper Temperature +70 °C +70 °C +70 °C +70 °C
Lower Temperature -25 °C -25 °C -25 °C -25 °C
Rated Voltage 60 60 60 60
Rated Impuls Voltage 800 V 800 V 800 V 800 V
Pollution Degree 3 3 3 3
Overvoltage Categorie II II II II
Material Group II II II II
Rated Current (40°) 3 A 3 A 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PUR PUR PUR PUR
Material Of Housing PUR PUR PUR PUR
Cable Diameter 3 mm 3 mm 4,5 mm 4,5 mm
Cable Jacket Material PVC PUR PVC PUR
Insulation Wire PVC PVC PVC PVC
Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
