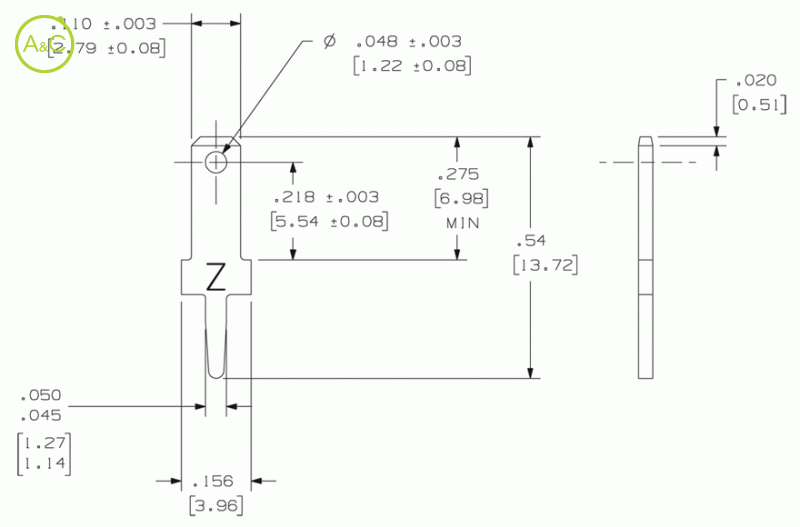

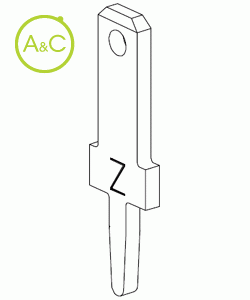

0.110" (2.79mm) Tabs / Quick Disconnect Terminals

  • Straight, 13.72 mm high

Packaging

  • Loose
  • Reeled
Article Number 834 835
Extra Description Straight, 13.72 mm high Straight, 13.72 mm high
Material Thickness / Type 0.020" (0.51mm) C26000 Brass 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper
Current Rating Ul 10 Amperes 10 Amperes
Current Rating C-ul 10 Amperes 10 Amperes
Ul File Number E146208 E146208
Applicator System Loose: ZPT81-A Reeled: Model 9700, 9700 XY Loose: ZPT81-A Reeled: Model 9700, 9700 XY
Mounting Type Press-Fit Press-Fit
Mounting Hole Diameter 0.044" ±0.003" (1.12mm ±0.076mm) 0.050" ±0.003" (1.27mm ±0.076mm)
Pieces Per Reel (loose Part No.) NA NA
Pieces Per Reel (reeled Part No.) / /
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
