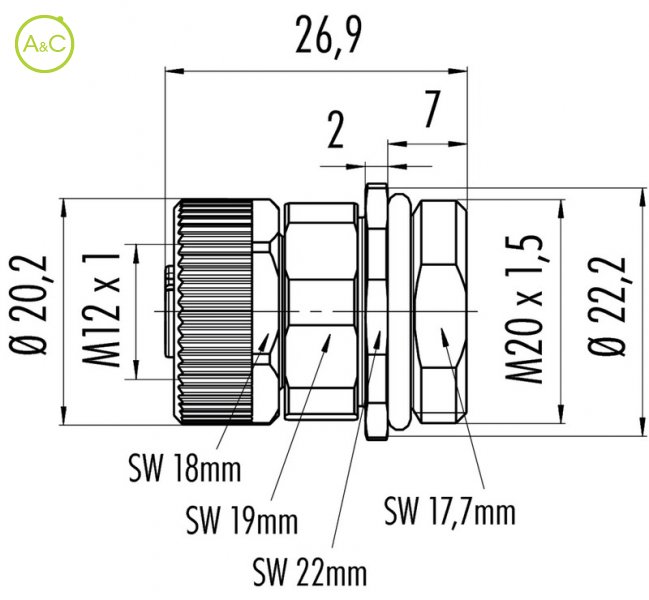

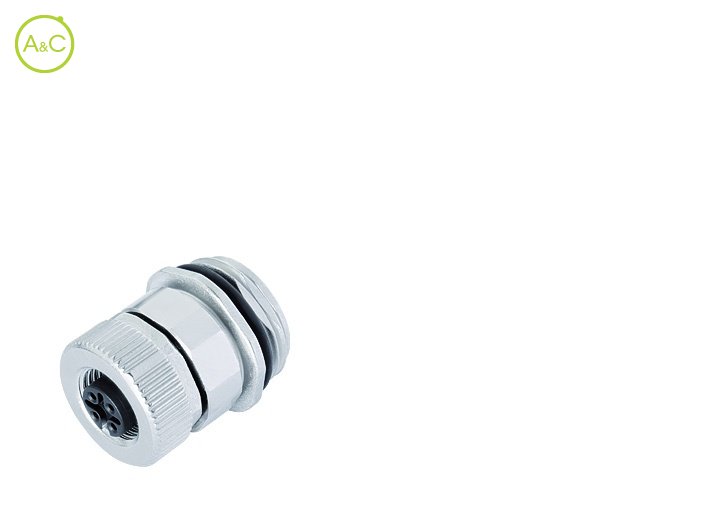

Female panel mount connector

  • Screw clamp connection
  • UL-approval

Number Of Poles

  • 8
Article Number 99 0382 500 08
Connector Diameter 22.2 mm
Number Of Contacts 8 contacts
Connector Locking System Screw (M12-A)
Termination Screw clamp
Wire Section 0.5 mm²
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 2 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Zinc diecasting nickel plated
Fixing Thread M20 x 1,5
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
