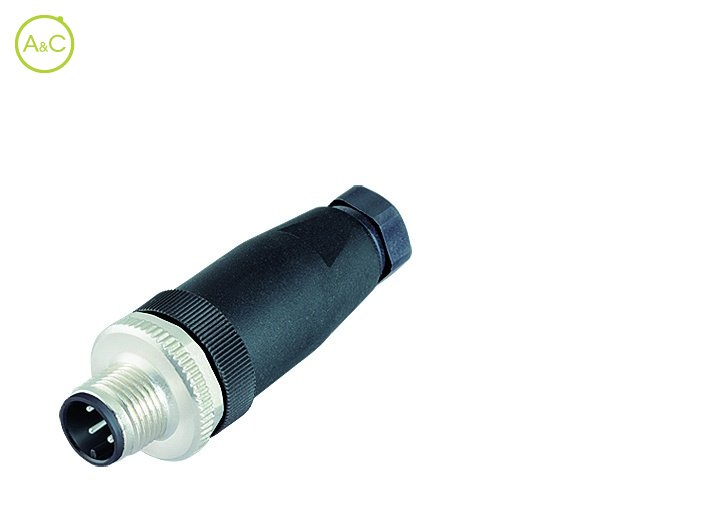

Male cable connector

  • Metal locking system, screw clamp connection, solder termination on 12 pol
  • UL-approval

Number Of Poles

  • 3
  • 4
  • 5
  • 8
  • 12
Article Number 99 0429 07 04 99 0429 158 04
Connector Diameter 20.2 mm 20.2 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Screw Screw
Wire Section 0.75 mm² 0.75 mm²
Protection Degree IP67 IP67
Mating Cycles >50 times >50 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 8 mΩ 8 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating CuSnZn (Optalloy) CuSnZn (Optalloy)
Material Of Insert PA PA
Material Of Housing PA PA
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
