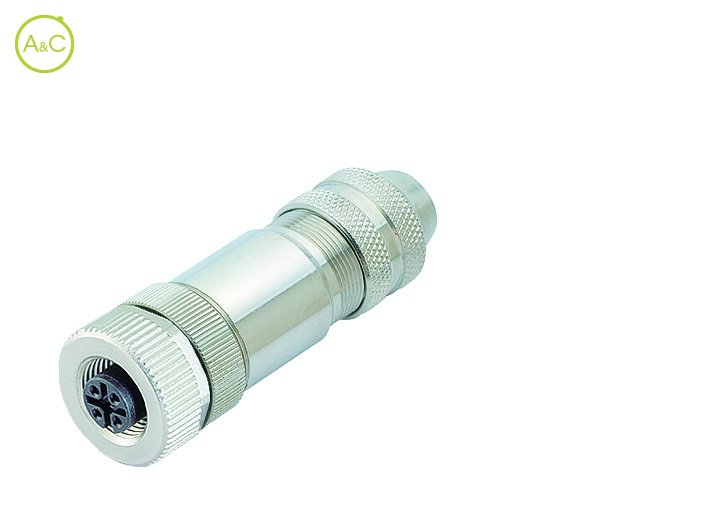

Female cable connector

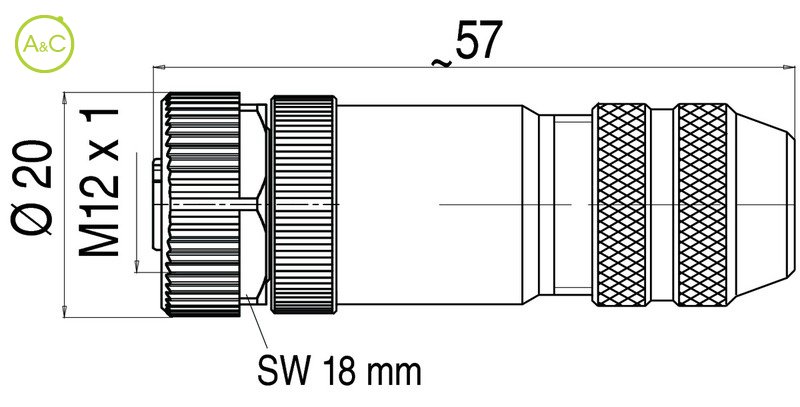

Shieldable, screw clamp connection, version with shielding ring, solder termination on 12 pol
UL-approval

Haben Sie Fragen zu diesem Produkt?

Weitere Informationen über diese Marke:

Article Number	99 1430 814 04	99 1430 812 04
Connector Diameter	20 mm	20 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Screw	Screw
Wire Section	0.75 mm²	0.75 mm²
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	Zinc diecasting nickel plated, brass nickel plated	Zinc diecasting nickel plated, brass nickel plated
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	99 1436 814 05	99 1436 812 05
Connector Diameter	20 mm	20 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Screw	Screw
Wire Section	0.75 mm²	0.75 mm²
Protection Degree	IP67	IP67
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	Zinc diecasting nickel plated, brass nickel plated	Zinc diecasting nickel plated, brass nickel plated
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	99 1486 812 08
Connector Diameter	20 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Screw
Wire Section	0.5 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Zinc diecasting nickel plated, brass nickel plated
Datenblatt	Download Datenblatt

Article Number	99 1492 812 12
Connector Diameter	20 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M12-A)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Zinc diecasting nickel plated, brass nickel plated
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
