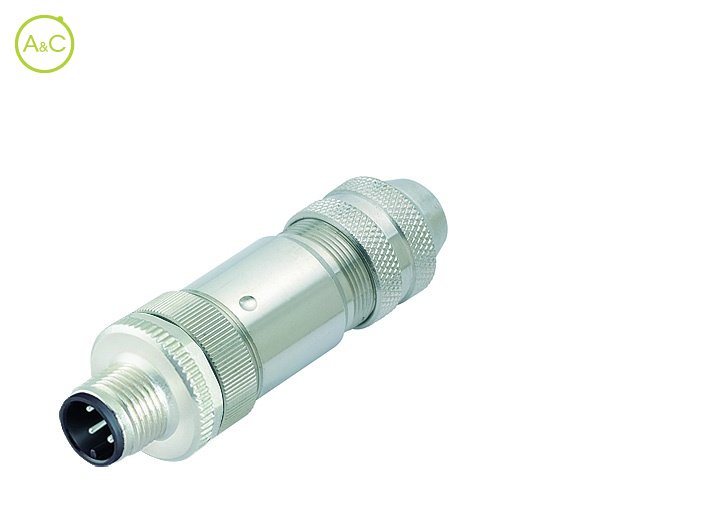

Male cable connector

  • Shieldable, with wire clamp connection, version with shielding ring

Number Of Poles

  • 4
  • 5
Article Number 99 1525 814 04 99 1525 812 04

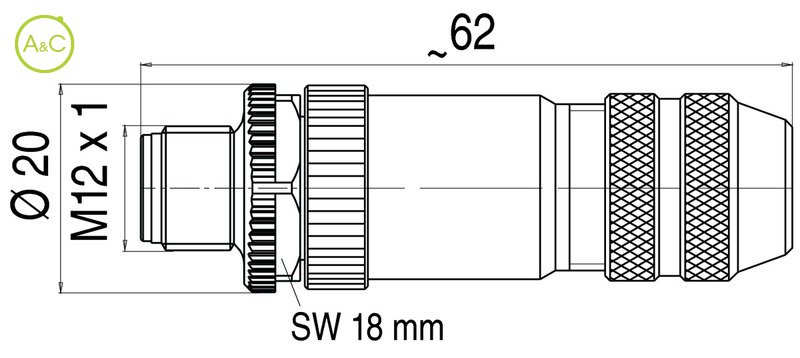

Connector Diameter 20 mm 20 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Wire clamp Wire clamp
Wire Section 0.5 mm² 0.5 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing Zinc diecasting nickel plated, PA Zinc diecasting nickel plated, PA
