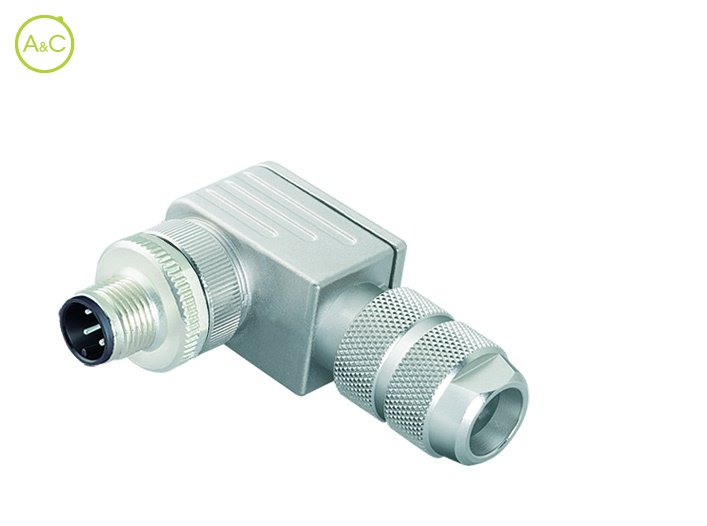

Male angled connector

Haben Sie Fragen zu diesem Produkt?

Weitere Informationen über diese Marke:

Article Number	99 1527 824 04
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Wire clamp
Wire Section	0.5 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Zinc diecasting nickel plated, PBT
Cable Outlet	5-8 mm
Datenblatt	Download Datenblatt

Article Number	99 1539 824 05
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Wire clamp
Wire Section	0.5 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Zinc diecasting nickel plated, PBT
Cable Outlet	5-8 mm
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
