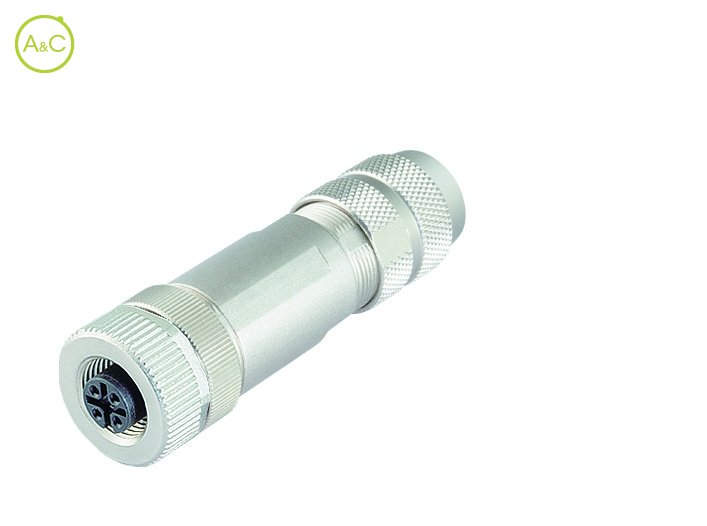

Female cable connector

  • Shieldable, wire clamp connection, iris type spring

Number Of Poles

  • 5
Article Number 99 1534 810 05 99 1534 910 05

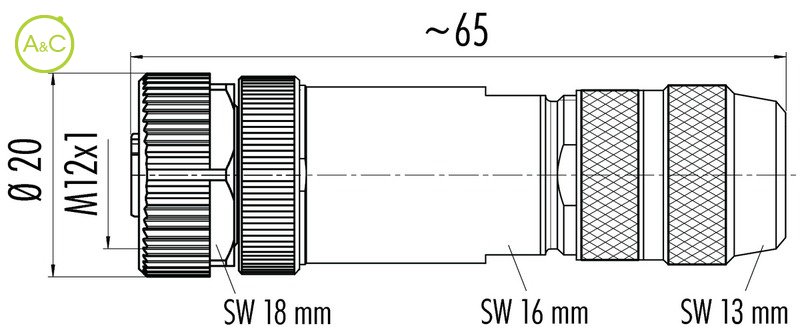

Connector Diameter 20 mm 20 mm
Number Of Contacts 5 contacts 5 contacts
Connector Locking System Screw (M12-B) Screw (M12-B)
Termination Wire clamp Wire clamp
Wire Section 0.5 mm² 0.5 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 125 125
Rated Impuls Voltage 1500 V 1500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing Zinc diecasting nickel plated, stainless steel 1.4404 Zinc diecasting nickel plated, stainless steel 1.4404
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
