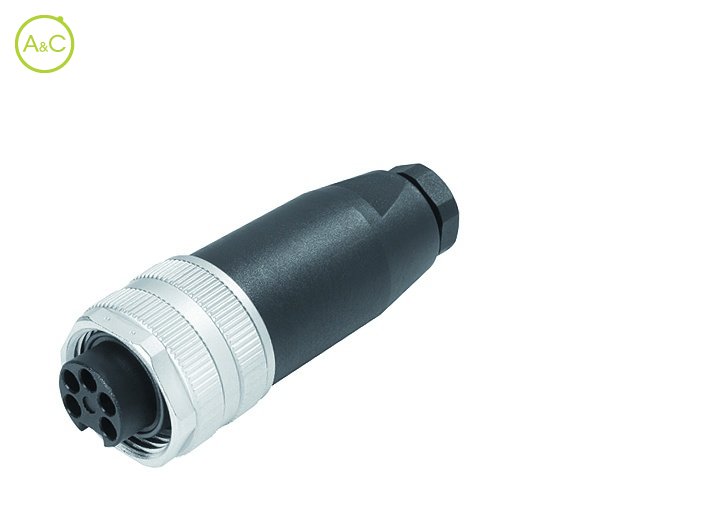

Female cable connector

UL-approval

99-2440-12-03

99-2440-12-03

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

2+PE
3+PE
4+PE

Article Number	99 2440 12 03	99 2440 32 03

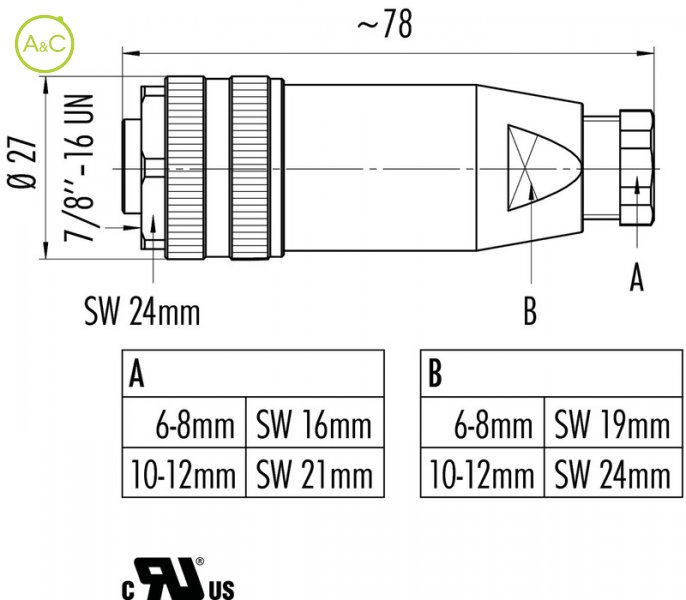

Connector Diameter	27 mm	27 mm
Number Of Contacts	2+PE contacts	2+PE contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Screw	Screw
Wire Section	1.5 mm²	1.5 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	4000 V	4000 V
Pollution Degree	3	3
Overvoltage Categorie	III	III
Material Group	III	III
Rated Current (40°)	12 A	12 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	99 2442 12 04	99 2442 32 04
Connector Diameter	27 mm	27 mm
Number Of Contacts	3+PE contacts	3+PE contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Screw	Screw
Wire Section	1.5 mm²	1.5 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	4000 V	4000 V
Pollution Degree	3	3
Overvoltage Categorie	III	III
Material Group	III	III
Rated Current (40°)	9 A	9 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	99 2444 12 05	99 2444 32 05	99 2444 33 05
Connector Diameter	27 mm	27 mm	27 mm
Number Of Contacts	4+PE contacts	4+PE contacts	4+PE contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Screw	Screw	Screw
Wire Section	1.5 mm²	1.5 mm²	2.5 mm²
Protection Degree	IP67	IP67	IP67
Mating Cycles	>50 times	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	4000 V	4000 V	4000 V
Pollution Degree	3	3	3
Overvoltage Categorie	III	III	III
Material Group	III	III	III
Rated Current (40°)	9 A	9 A	9 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
