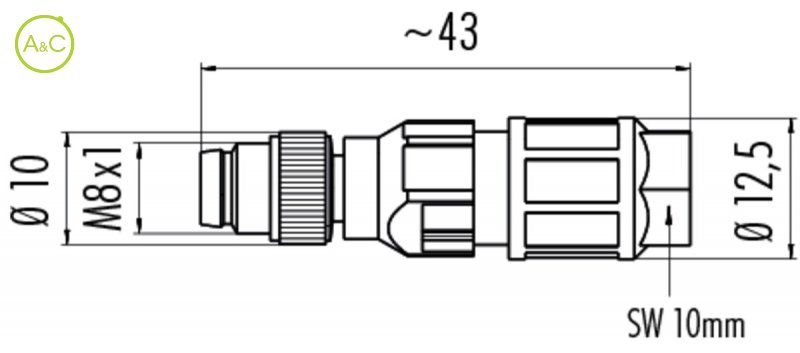

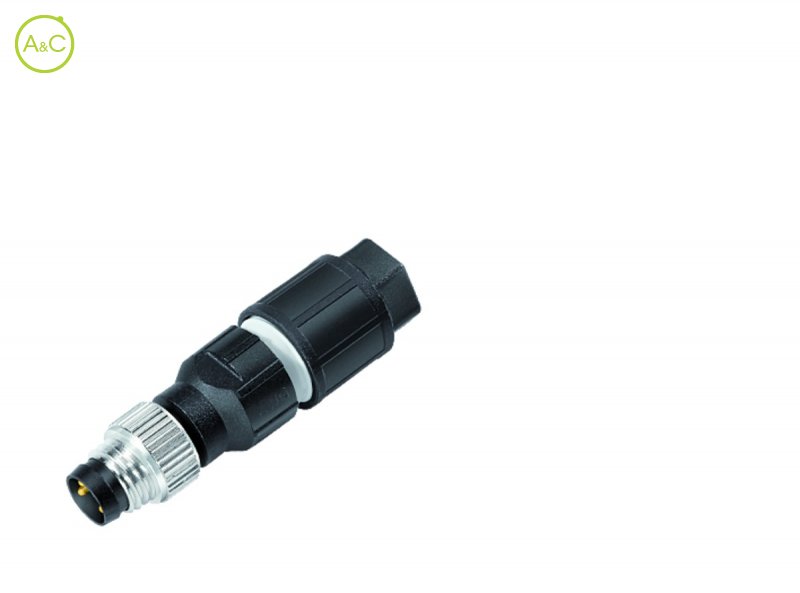

Male cable connector

  • IDT

Number Of Poles

  • 3
  • 4
Article Number 99 3379 500 03 99 3379 550 03
Connector Diameter 10 mm 10 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M8) Screw (M8)
Termination Cutting clamping Cutting clamping
Wire Section 0,08-0,25 mm² 0,25-0,5 mm²
Protection Degree IP67 IP67
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 5 mΩ 5 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert TPU TPU
Cable Outlet 2,5-5,2 mm 2,5-5,2 mm
Wire Gauge 28-24 AWG 24-20 AWG
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
