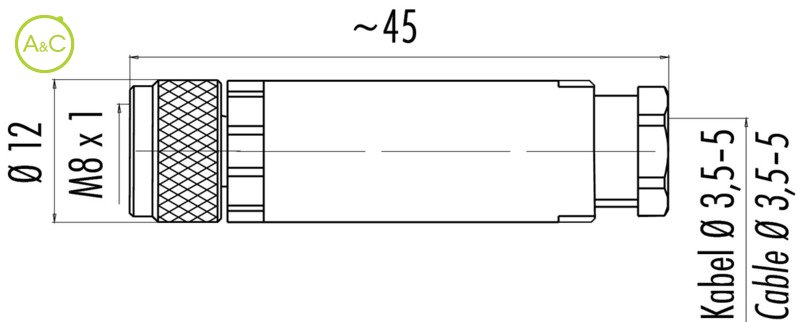

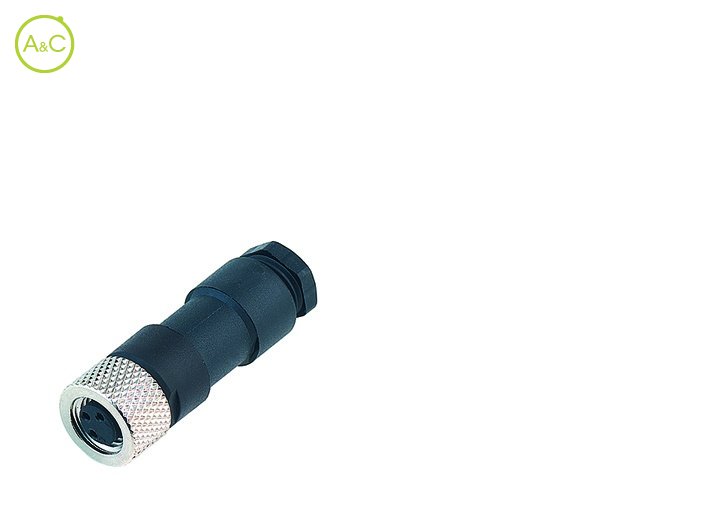

Female cable connector

  • Solder

Number Of Poles

  • 3
  • 4
Article Number 99 3400 00 03
Connector Diameter 12 mm
Number Of Contacts 3 contacts
Connector Locking System Screw (M8)
Termination Solder
Wire Section 0.25 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze) / CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 HB)
Material Of Housing PBT/PA/CuZn (Brass)
Cable Outlet 3,5-5 mm
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
