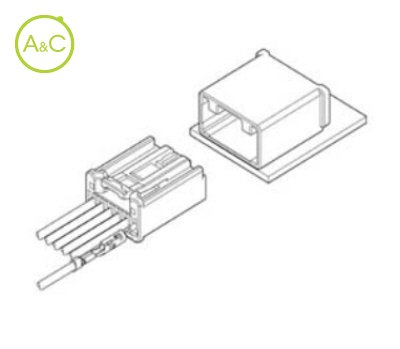

Female Connector Side Lock
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Color
- Black
- White
Article Number | AIT2PB-02G-1AK | AIT2PB-03B-1AK | AIT2PB-04B-1AK | AIT2PB-04G-1AK |
Number Of Contacts | 2 | 3 | 4 | 4 |
Upper Temperature | +105 °C | +105 °C | +105 °C | +105 °C |
Lower Temperature | -40 °C | -40 °C | -40 °C | -40 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.54mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.54mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.54mm Pitch Disconnectable Crimp Style (Wire to Board) |
Connection Type | Automotive | Automotive | Automotive | Automotive |
Pitch / Style | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
Rated Current (ac/dc) | 5 A | 5 A | 5 A | 5 A |
Rated Voltage (ac/dc) | 14 V | 14 V | 14 V | 14 V |
Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) |
Remark | Front-Load | Side-Load | Front-Load | Side-Load |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
0.64 unsealed low-profile connector series for use in a wide range of automotive applications.
Ultra Low Profile Connector
Over 30% height reduction as compared to the standard USCAR footprints.
Variations
There are multiple varieties of AIT-II Connectors which can satisfy your needs.
RoHS Compliant
